Product Details

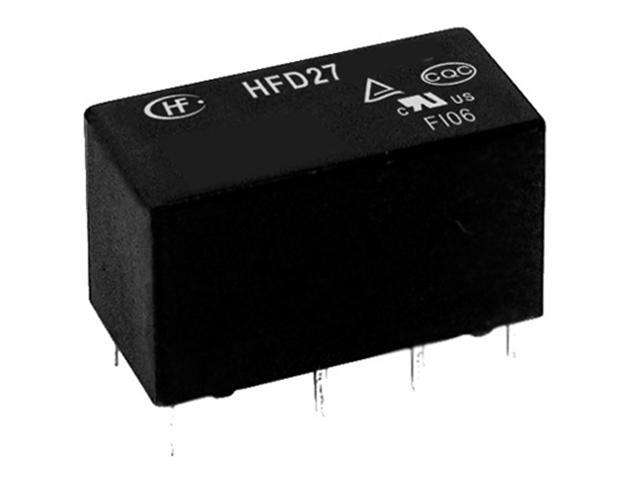

Subminiature Signal Relay, Form 2C, VCoil= 48V DC, IMax Switching= 2A , RCoil= 4kΩ, PCB, in Vertical Case
Overview
Features
Specification
Â
| Model | HFD27-048-M |
| Brand | Hongfa |
| Contact Form | Form 2C |
| Size Category | Submini |
| Size | 20.2x10x11.5mm |
| Termination | PCB |
| Coil Rated Voltage | 48V |
| AC/DC Voltage | DC |
| Max. Switching Current | 2A |
| Electrical Rating | 1A 125VAC | 2A 30VDC |
| Coil Power | 580mW Power |
| Coil Resistance | 4kΩ |
| Isolation Voltage | 1K5V |
| Approvals | UL/CUL/TUV |
| Contact Material | AgNi + Au plated |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
