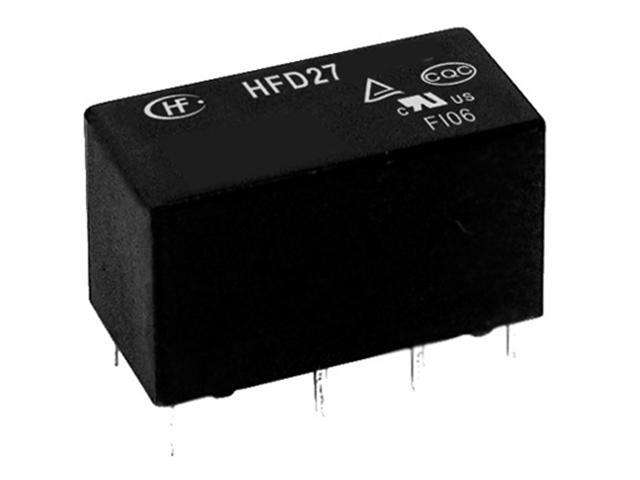

HFD27-024-S

Subminiature Signal Relay, Form 2C, VCoil= 24V DC, IMax Switching= 2A , RCoil= 2.88k?, PCB, in Vertical Case
Specifications
Sensitive Coil

Additional Information
Model : HFD27-024-S
Contact Form : Form 2C
Size Category : Submini
Size : 20.2x10x11.5mm
Termination : PCB
Coil Rated Voltage : 24V
AC/DC Voltage : DC
Max. Switching Current : 2A
Electrical Rating : 1A 125VAC | 2A 30VDC
Coil Power : 200mW Power
Coil Resistance : 2.88k?
Isolation Voltage : 1K5V
Approvals : UL/CUL/TUV
Contact Material : AgNi + Au plated
No. of Pins : 8 Pin(s)
No. of Poles : 2 Pole(s)
