Product Details

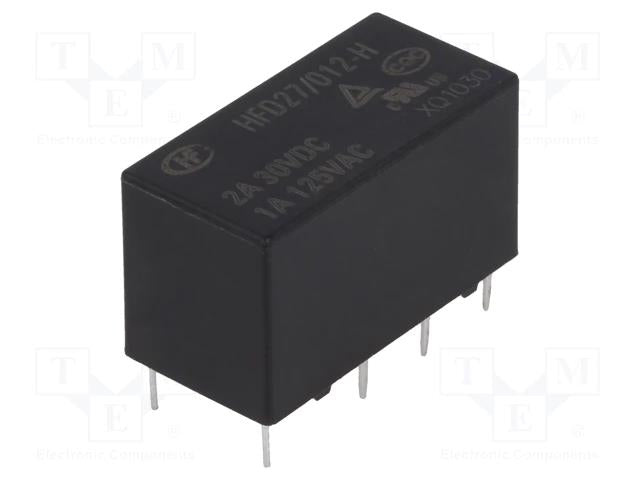

Sub Mini DIP Sealed Low Power Hi-Sensitive (150mW) Relay Form 2C (2c/o) 12VDC 960 ohm coil 2A 30VDC/1A 125VAC Max.
Specifications
Contacts configuration
DPDT
Rated coil voltage
12V DC
Contact current max.
2A
AC contacts rating @R(at resistive load)
1A / 125V AC
DC contacts rating @R(at resistive load)
2A / 30V DC
Switched voltage
max. 120V DC, max. 240V AC
Relay variant
subminiature
Mounting
PCB
Coil resistance
960?
Coil voltage min.
9.6V DC
Coil voltage max.
27.7V DC
Operate time
7ms
Body dimensions
20.2x10x11.5mm
Release time
4ms
Coil power consumption
150mW
Operating temperature
-40...85°C
Contact resistance
100m?
Contact material
AgNi + Au
Terminal pitch
5.08mm
Downloads
Datasheet - HFD27-012-H (PDF)
