Product Details

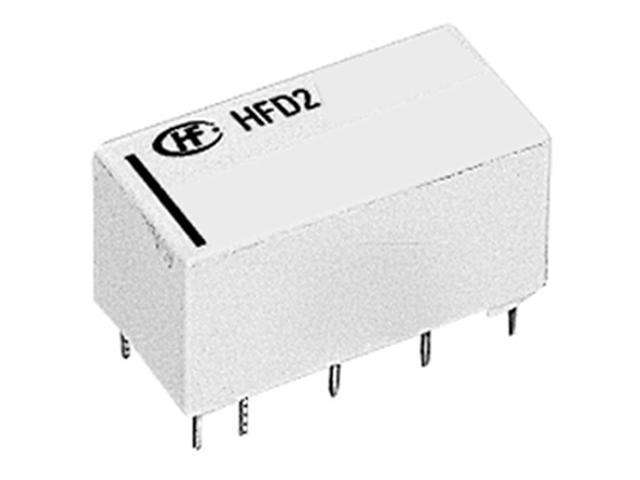

Subminiature Signal Relay, Form 2C, VCoil= 12V DC, IMax Switching= 3A , RCoil= 960?, PCB, in Vertical Case
Specifications
Sensitive Coil
Double Coil latching
Additional Information
Model : HFD2-012SL2D
Contact Form : Form 2C
Size Category : Submini
Size : 20.2x10.2x10.6mm
Termination : PCB
Coil Rated Voltage : 12V
AC/DC Voltage : DC
Max. Switching Current : 3A
Electrical Rating : 1A 125VAC | 2A 30VDC | 3A 30VDC
Coil Power : 150mW Power
Coil Resistance : 960?
Isolation Voltage : 1KV
Approvals : UL/CUL
Contact Material : Ag-AuAg8
No. of Pins : 8 Pin(s)
No. of Poles : 2 Pole(s)
Downloads
HFD2 Datasheet (PDF)
