Product Details

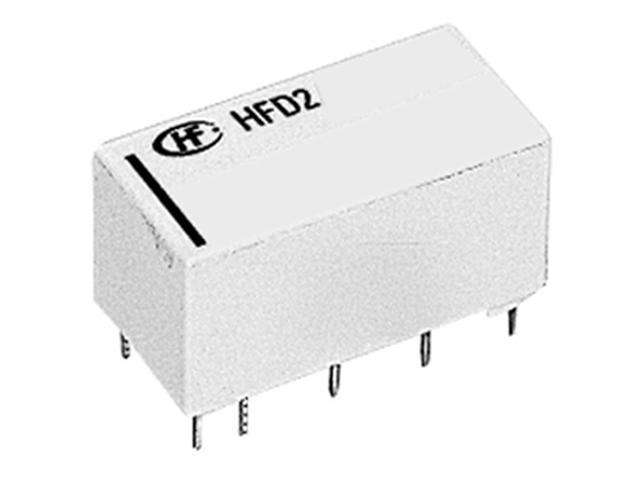

Subminiature Signal Relay, Form 2C, VCoil= 5V DC, IMax Switching= 3A , RCoil= 167Ω, PCB, in Vertical Case
Overview
Features
Specification
Â
- Sensitive Coil
- Single Side Stable
| Model | HFD2-005SD |
| Brand | Hongfa |
| Contact Form | Form 2C |
| Size Category | Submini |
| Size | 20.2x10.2x10.6mm |
| Termination | PCB |
| Coil Rated Voltage | 5V |
| AC/DC Voltage | DC |
| Max. Switching Current | 3A |
| Electrical Rating | 1A 125VAC | 2A 30VDC | 3A 30VDC |
| Coil Power | 150mW Power |
| Coil Resistance | 167Ω |
| Isolation Voltage | 1KV |
| Approvals | UL/CUL |
| Contact Material | Ag-AuAg8 |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
