Product Details

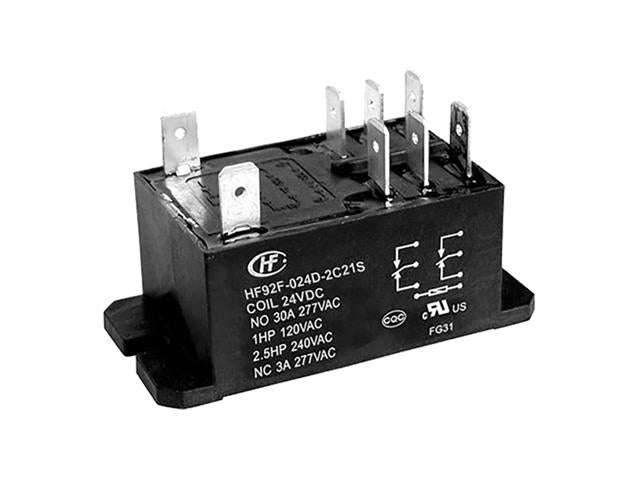

High Power Flange Mounted Sealed Relay Form 2C (2c/o) 24VDC 350 Ohm Coil 30A 250VAC (277VAC Max.)
High Power Flange Mounted Sealed
Features
- 30 A switching capability
- AC and DC coil options available
- 4 kV dielectric strength
- 3 mm contact gap
- Silver tin oxide terminals
- RoHS compliant
Downloads
Additional Information
| Device | Relay |
| Type | High Power | Flange Mounted | Sealed |
| Contact Form | Form 2C |
| Coil Rated Voltage | 24V |
| Max. Switching Current | 30A |
| Coil Resistance | 350Ω |
| No. of Poles | 1 Pole(s) |
