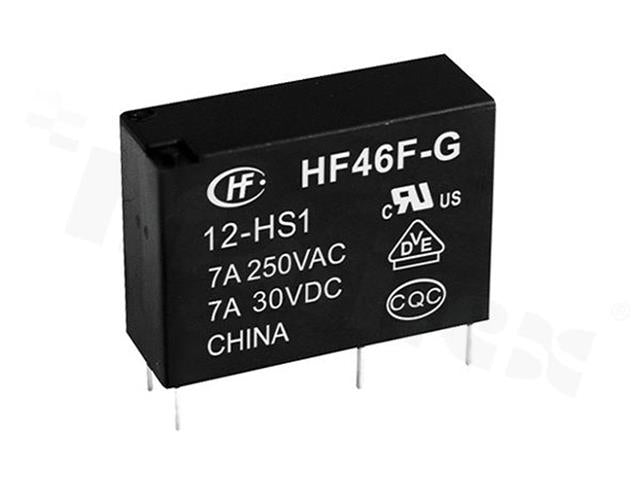

HF46F-G-5-HS1T

Medium Power Mini Sealed Slim Relay Form 1A (1n/o) 7mm Contact Spacing 24VDC 2880 Ohm Coil 7A 250VAC/30VDC (277VAC/30VDC Max.) Withstands10KV Impulse
Features
10A switching capability
10kV impulse withstand voltage (between coil and contacts)
Meets VDE 0700, 0631 reinforce insulation
Highly efficient magnetic circuit for high sensitivity: 200mW
Extremely small footprint utilizing PCB area

Additional Information
Contact Form : Form 1A
Coil Rated Voltage : 24V
Max. Switching Current : 7A
Coil Resistance : 2880?
