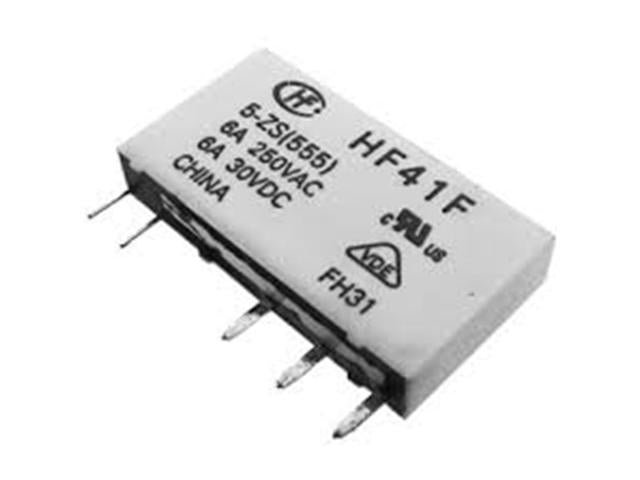

HF41F-24-ZSTG

Subminiature Power Relay, Form 1C, VCoil= 24V DC, IMax Switching= 6A , RCoil= 3.39k?, PCB, in Vertical Case
Additional Information
Model : HF41F-024-ZST
Contact Form : Form 1C
Size Category : Submini
Size : 28x5x15mm
Termination : PCB
Coil Rated Voltage : 24V
AC/DC Voltage : DC
Max. Switching Current : 6A
Electrical Rating : 6A | 250VAC
Coil Power : 170mW Power
Coil Resistance : 3.39k?
Approvals : UL/CUL/VDE
Contact Material : AgSnO4
No. of Pins : 5 Pin(s)
No. of Poles : 1 Pole(s)
