Product Details

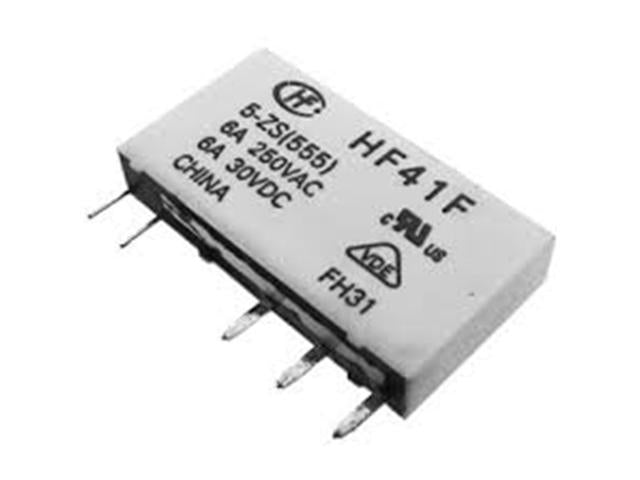

Med. Power Mini SIL Sealed Relay Form 1C (1c/o) 12VDC 848 Ohm Coil 6A 250VAC/30VDC-Gold Flash Contacts
Subminiature Power Relay
Additional Information
| Keywords | HF41F Power Relay, Relay 12V 6A |
| Model | HF41F-12ZS |
| Device | Relay |
| Type | Power |
| Highlights | Wash Tight |
| Contact Form | Form 1C |
| Size Category | Submini |
| Size | 28x5x15mm |
| Termination | PCB |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 6A |
| Electrical Rating | 6A | 250VAC |
| Coil Power | 170mW Power |
| Coil Resistance | 848Ω |
| Approvals | UL/CUL/VDE |
| Contact Material | AgNi |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
