Product Details

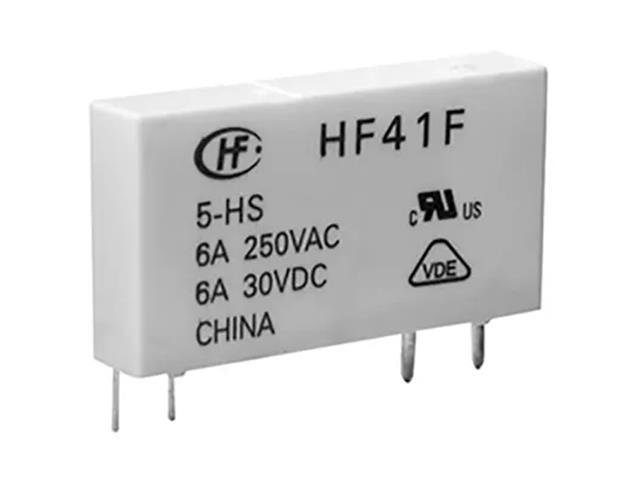

Subminiature Power Relay, Form 1A, VCoil= 12V DC, IMax Switching= 6A , RCoil= 848?, PCB, in Vertical Case
Specifications
Plastic Sealed
Additional Information
Model : HF41F-012-HST
Contact Form : Form 1A
Size Category : Submini
Size : 28x5x15mm
Termination : PCB
Coil Rated Voltage : 12V
AC/DC Voltage : DC
Max. Switching Current : 6A
Electrical Rating : 6A | 250VAC
Coil Power : 170mW Power
Coil Resistance : 848?
Approvals : UL/CUL/VDE
Contact Material : AgSnO2
No. of Pins : 4 Pin(s)
No. of Poles : 1 Pole(s)
