Product Details

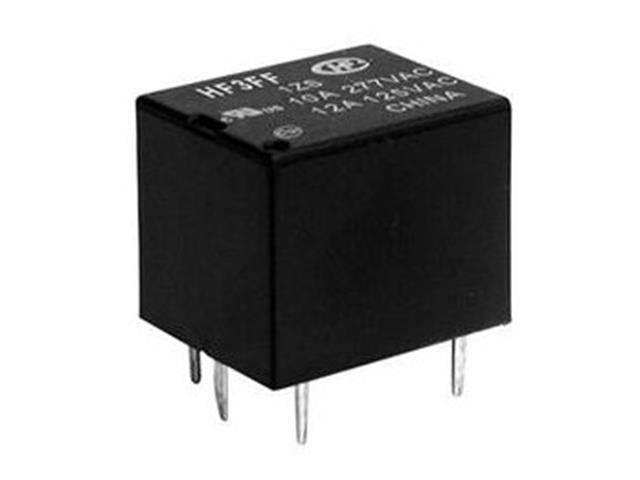

Relay PCB 1C 24VDC 1600 OHM 10A Flux Proofed
Downloads
Additional Information
| Keywords | HF3FF-024-1Z, Relay 24V 10A |
| Model | HF3FF-024-1Z |
| Device | Relay |
| Type | Power |
| Contact Form | Form 1C |
| Size | 19x15.2x15.5mm |
| Termination | PCB |
| Coil Rated Voltage | 24V |
| AC/DC Voltage | DC |
| Max. Switching Current | 10A |
| Electrical Rating | 10A | 250VAC |
| Coil Power | 360mW Power |
| Coil Resistance | 1.6kΩ |
| Isolation Voltage | 1K5V |
| Approvals | UL/CUL/VDE |
| Contact Material | AgCdO |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
