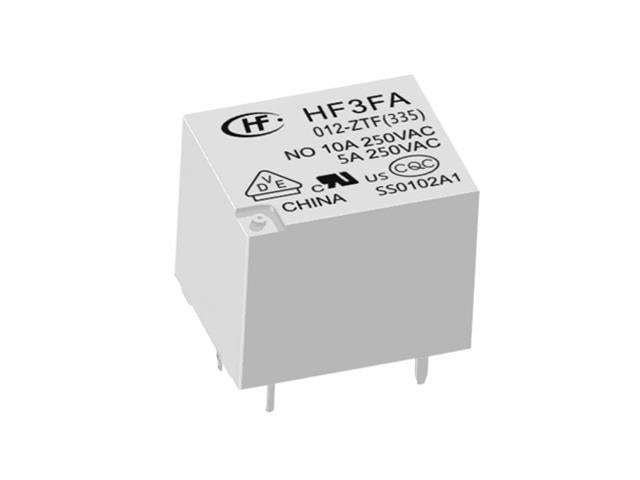

HF3FA-012-HSTF(136)

High Power Sub-Mini "Sugar Cube" Sealed Relay Form 1C (1c/o) 9VDC 225 Ohm Coil 10A 250VAC (277VAC/28VDC Max.) - Class F Insulation
Features
5A 125VAC;10A 250VAC switching capability
Flammability class according to UL94, V-0
CTI 250 available
Product in accordance to IEC 60335-1 available
1 Form A and 1 Form C configurations
Subminiature, standard PCB layout
UL insulation system: Class F

Additional Information
Contact Form : Form 1C
Coil Rated Voltage : 9V
Max. Switching Current : 10A
Coil Resistance : 225?

Downloads
HF3FA_HF3FA-T-Datasheet (PDF)
