Safety Relay - DIN Rail Mount 1 n/o + 1 n/c 24VAC/DC - Contact Rating 6A 250VAC/30VDC for Emergency Stop and Safety Door (Pilz 774051)

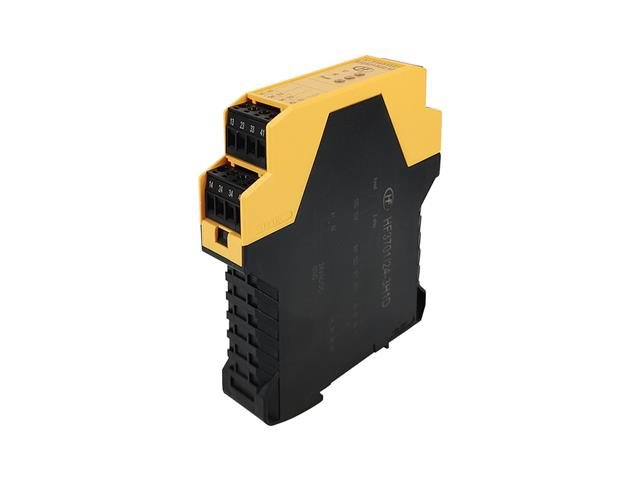

DIN Rail Mount Safety Relay

Features

Safety relay for monitoring emergency stop switch and safety door switch
Internal circuit redundancy design, even if there is a single component failure, the safety function can still be maintained
With built-in self-test function, each start and stop cycle is automatically checked
Measure the normal action and release of the internal relay
Contact non time delay, up to 4 safety contact outputs, manual or automatic reset
Comply with the requirements of EN 60947-5-1 and EN 60204-1, PLe of ISO 13849-1, and SIL 3 of IEC 62061-1
Pluggable screw or spring terminals are optional
The LED light indicates the working status and power status of the internal relay

Device	Relay
Type	DIN Rail Mount \| Safety
