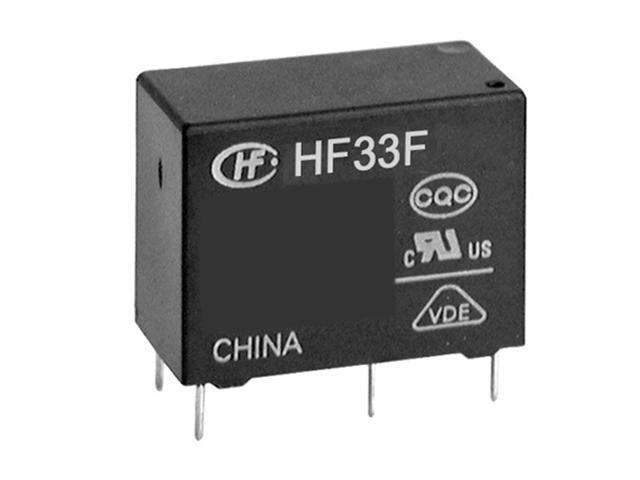

HF33F-005-ZST

Miniature Intermediate Power Relay, Form 1A, VCoil= 5V DC, IMax Switching= 5A , RCoil= 55?, PCB, in Vertical Case
Specifications
Plastic Sealed
8mm Creepage Distance

Additional Information
Model : HF33F-005-HS
Contact Form : Form 1A
Size Category : Mini
Size : 20.5x10.2x15.3mm
Termination : PCB
Coil Rated Voltage : 5V
AC/DC Voltage : DC
Max. Switching Current : 5A
Electrical Rating : 5A | 250VAC
Coil Power : 450mW Power
Coil Resistance : 55?
Isolation Voltage : 1KV
Approvals : UL/CUL/VDE
Contact Material : AgCdO
No. of Pins : 4 Pin(s)
No. of Poles : 1 Pole(s)

Downloads
HF33F Datasheet (PDF)
