Product Details

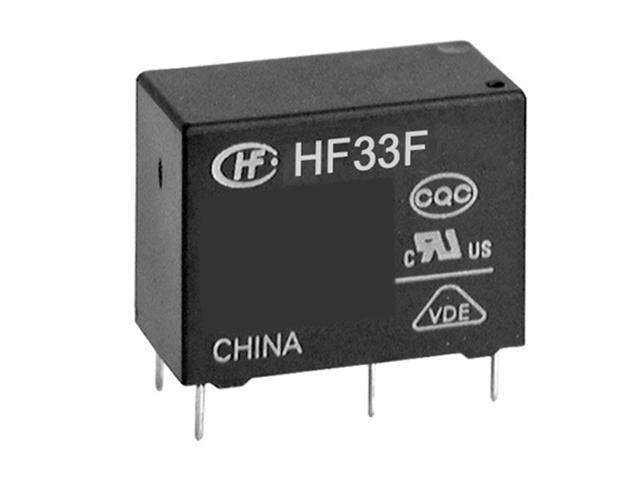

Miniature Intermediate Power Relay, Form 1A, VCoil= 5V DC, IMax Switching= 5A , RCoil= 55Ω, PCB, in Vertical Case
Overview
Features
Specification
Â
- Plastic Sealed
- 8mm Creepage Distance
| Model | HF33F-005-HS |
| Brand | Hongfa |
| Contact Form | Form 1A |
| Size Category | Mini |
| Size | 20.5x10.2x15.3mm |
| Termination | PCB |
| Coil Rated Voltage | 5V |
| AC/DC Voltage | DC |
| Max. Switching Current | 5A |
| Electrical Rating | 5A | 250VAC |
| Coil Power | 450mW Power |
| Coil Resistance | 55Ω |
| Isolation Voltage | 1KV |
| Approvals | UL/CUL/VDE |
| Contact Material | AgCdO |
| No. of Pins | 4 Pin(s) |
| No. of Poles | 1 Pole(s) |
