Product Details

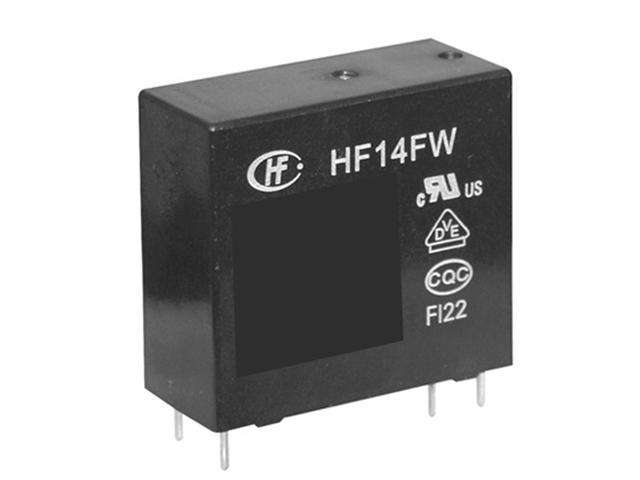

Miniature High Power Relay, Form 1C, VCoil= 12V DC, IMax Switching= 20A , RCoil= 275?, PCB, in Vertical Case
Specifications
Plastic Sealed
Sensitive Coil
5mm Pin Pitch
Additional Information
Model : HF14FW-012-ZS
Contact Form : Form 1C
Size Category : Mini
Size : 29.0x13.0x26.5mm
Termination : PCB
Coil Rated Voltage : 12V
AC/DC Voltage : DC
Max. Switching Current : 20A
Electrical Rating : 16A | 250VAC | 30VDC
Coil Power : 530mW Power
Coil Resistance : 275?
Isolation Voltage : 4KV
Approvals : UL/CUl/VDE
Contact Material : AgCdO
No. of Pins : 8 Pin(s)
No. of Poles : 1 Pole(s)
Downloads
HF14FW Datasheet (PDF)
