Product Details

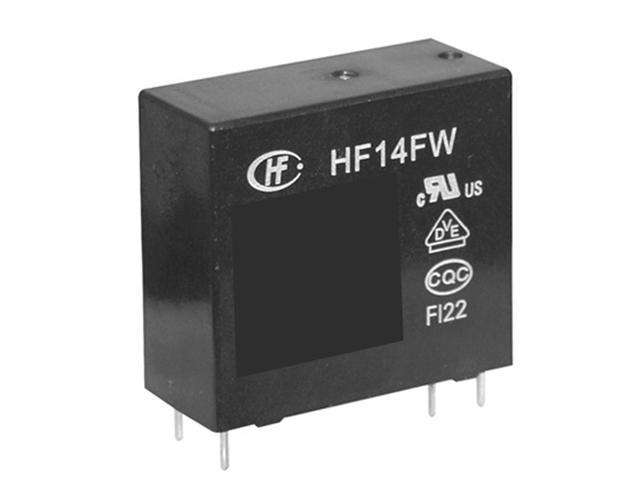

Miniature High Power Relay, Form 1C, VCoil= 6V DC, IMax Switching= 20A , RCoil= 68Ω, PCB, in Vertical Case
Overview
Features
Specification
Â
Â
| Model | HF14FW-006-ZS |
| Brand | Hongfa |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 29.0x13.0x26.5mm |
| Termination | PCB |
| Coil Rated Voltage | 6V |
| AC/DC Voltage | DC |
| Max. Switching Current | 20A |
| Electrical Rating | 16A | 250VAC | 30VDC |
| Coil Power | 530mW Power |
| Coil Resistance | 68Ω |
| Isolation Voltage | 4KV |
| Approvals | UL/CUl/VDE |
| Contact Material | AgCdO |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 1 Pole(s) |
