Product Details

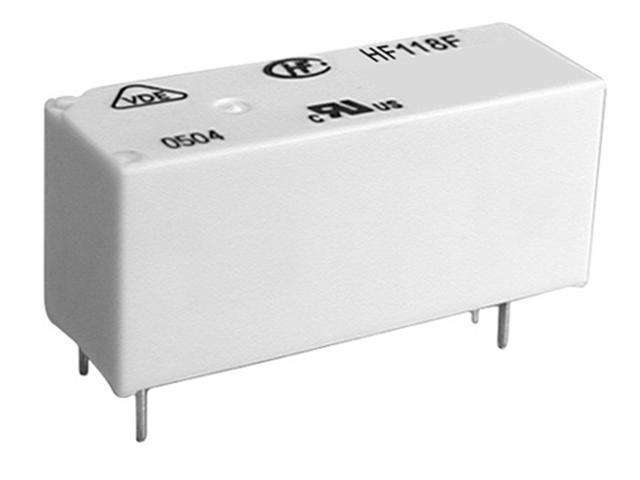

Miniature High Power Relay, Form 1C, VCoil= 48V DC, IMax Switching= 8A , RCoil= 8kΩ, PCB, in Low Profile Case
Overview
Features
Specification
Â
- Plastic Sealed
- Low Profile Case
- ≥8mm Creepage Distance
- 3.2mm Pin Pitch
| Model | HF118F-048-1ZS1 |
| Brand | Hongfa |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 28,5x10,1x12,5mm |
| Termination | PCB |
| Coil Rated Voltage | 48V |
| AC/DC Voltage | DC |
| Max. Switching Current | 8A |
| Electrical Rating | 10A | 250VAC |
| Coil Power | 290mW Power |
| Coil Resistance | 8kΩ |
| Isolation Voltage | 5Kv |
| Approvals | UL/CUL/VDE |
| Contact Material | AgNi |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
