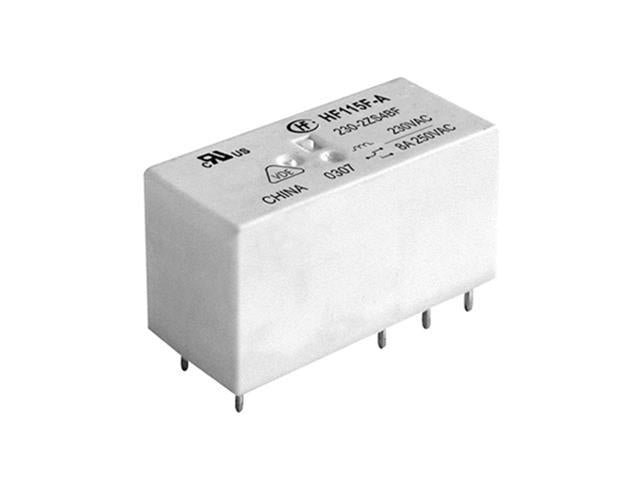

HF115F-A-230-2ZS4AF

HF115F-A-230-2ZS4AF

Regular price Dhs. 29.70
Regular price Sale price Dhs. 29.70
Sale Sold out
Shipping calculated at checkout.

Sealed | PCB | Low Profile | Class F | 16A | 250VAC | Form 1C
Specifications
Plastic Sealed
Low Profile Case ,Insulation Class F
10mm Creepage Distance
5mm Pin Pitch

Additional Information
Model : HF115F-A230-1ZS3AF
Contact Form : Form 1C
Size Category : Mini
Size : 29.0x12.7x15.7mm
Termination : PCB
Coil Rated Voltage : 230V
AC/DC Voltage : AC
Max. Switching Current : 16A
Electrical Rating : 16A | 250VAC
Coil Resistance : 32.5k?
Isolation Voltage : 5KV
Approvals : UL/CUL/VDE
Contact Material : AgSn02
No. of Pins : 8 Pin(s)
No. of Poles : 1 Pole(s)

Downloads
HF115F-A Datasheet (PDF)
