Product Details

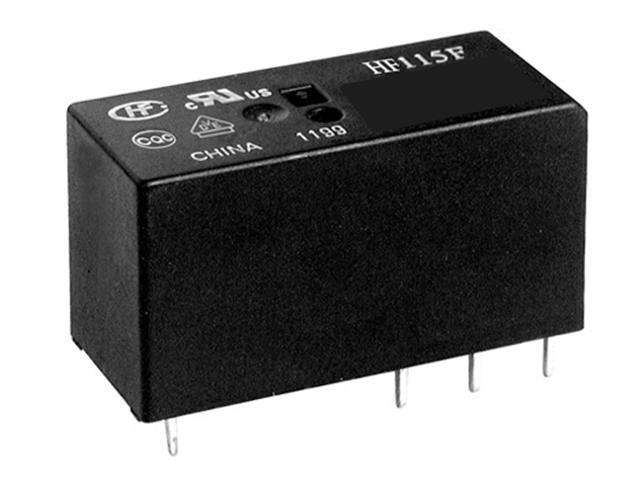

Miniature High Power Relay, Form 2C, VCoil= 110V DC, IMax Switching= 8A , RCoil= 25.2kΩ, PCB, in Low Profile Case
Overview
Features
Specification
- Plastic Sealed
- Low Profile Case ,Insulation Class B
- 10mm Creepage Distance
- 5mm Pin Pitch
- Relay Socket base AS626 Or PSP-08A
Â
| Model | HF115F-110-2ZS4AF |
| Brand | Hongfa |
| Contact Form | Form 2C |
| Size Category | Mini |
| Size | 29.0x12.7x15.7mm |
| Termination | PCB |
| Coil Rated Voltage | 110V |
| AC/DC Voltage | DC |
| Max. Switching Current | 8A |
| Electrical Rating | 8A | 250VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 25.2kΩ |
| Isolation Voltage | 5KV |
| Approvals | UL/CUR/VDE/FIMK. |
| Contact Material | AgCdO |
| No. of Pins | 8 Pin(s) |
| No. of Poles | 2 Pole(s) |
