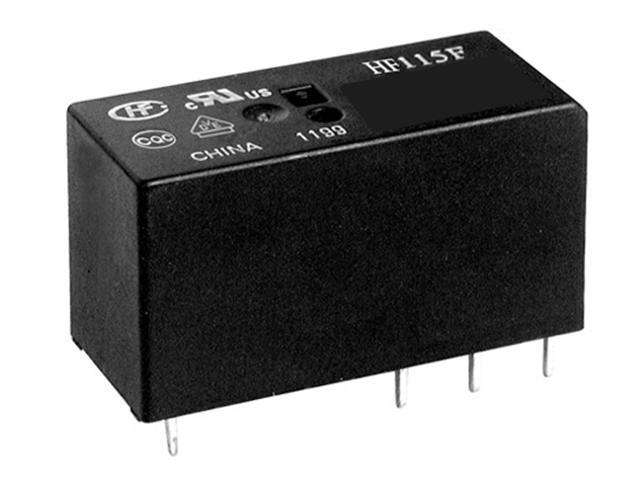

HF115F-009-1ZS2AF

Miniature High Power Relay, Form 2C, VCoil= 6V DC, IMax Switching= 8A , RCoil= 90?, PCB, in Low Profile Case
Specifications
Plastic Sealed
Low Profile Case ,Insulation Class B
10mm Creepage Distance
5mm Pin Pitch

Additional Information
Model : HF115F-006-2ZS4
Contact Form : Form 2C
Size Category : Mini
Size : 29.0x12.7x15.7mm
Termination : PCB
Coil Rated Voltage : 6V
AC/DC Voltage : DC
Max. Switching Current : 8A
Electrical Rating : 8A | 250VAC
Coil Power : 400mW Power
Coil Resistance : 90?
Isolation Voltage : 5KV
Approvals : UL/CUR/VDE/FIMK.
Contact Material : AgCdO
No. of Pins : 8 Pin(s)
No. of Poles : 2 Pole(s)

Downloads
HF115F Datasheet (PDF)
