Product Details

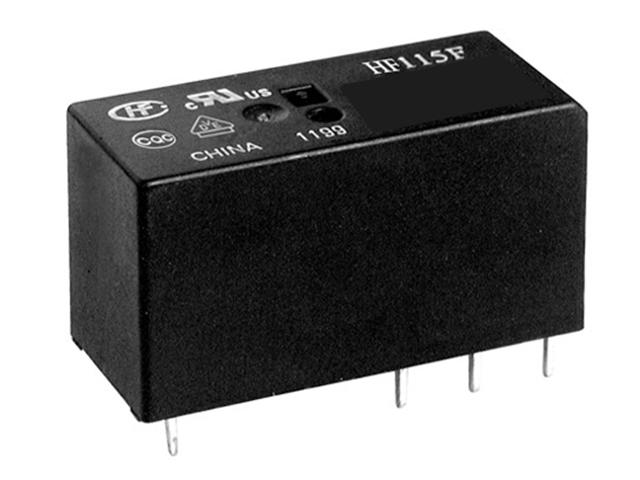

Miniature High Power Relay, Form 1C, VCoil= 9V DC, IMax Switching= 12A , RCoil= 202Ω, PCB, in Low Profile Case
Specifications
- Plastic Sealed
- Low Profile Case ,Insulation Class B
- 10mm Creepage Distance
- 3.5mm Pin Pitch
Downloads
Additional Information
| Keywords | HF115F Power Relay, Relay 9V 12A |
| Model | HF115F-009-1ZS1 |
| Device | Relay |
| Type | Power |
| Contact Form | Form 1C |
| Size Category | Mini |
| Size | 29.0x12.7x15.7mm |
| Termination | PCB |
| Coil Rated Voltage | 9V |
| AC/DC Voltage | DC |
| Max. Switching Current | 12A |
| Electrical Rating | 12A | 250VAC |
| Coil Power | 400mW Power |
| Coil Resistance | 202Ω |
| Isolation Voltage | 5KV |
| Approvals | UL/CUR/VDE/FIMK. |
| Contact Material | AgCdO |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
