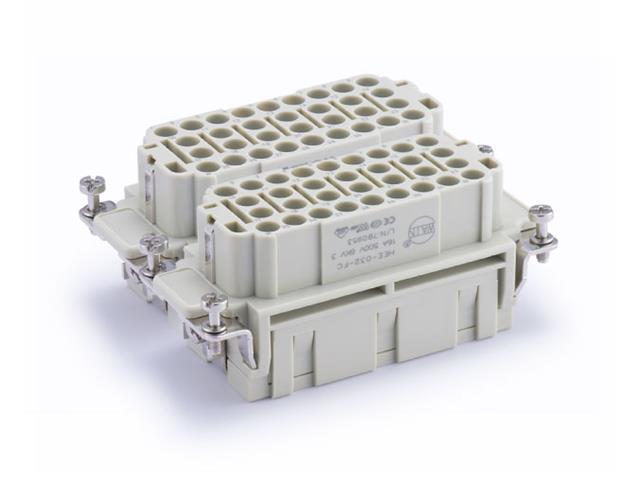

Series 64EE (C) Insert 32P+E - Size 32B - Female Crimp Termination 16A/500V -Numbered 33-64 = 09320323111
Series 64EE (C) Insert 32P+E
Specifications
| Inserts |
| Number of contacts |
64(2x32)+PE |
| Electrical data acc. to EN 61 984 |
|
| ---Rated current |
16A |
| ---Rated voltage |
500V |
| ---Rated impulse voltage |
6kV |
| ---Pollution degree |
3 |
| ---Pollution degree 2 also |
16A 830V 8kV 2 |
| Rated voltage acc. to UL |
600V |
| Insulation resistance |
≥1010Ω |
| Material |
polycarbonate |
| Limiting temperatures |
-40℃...+125℃ |
| Flammability acc. to UL 94 |
V0 |
| Mechanical working life(mating cycles) |
≥500 |
| Contacts |
| Material |
copper alloy |
| Surface |
hard-gold plated |
| hard-silver plated |
| Contact resistance |
≤1mΩ |
| Crimp terminal |
|
| ---Wrie gauge |
0.14-4.0mm2
|
| ---AWG |
26-12 |
| ---Stripping length |
7.5mm |
Additional Information
| Device |
Insert |
| Type |
Series 64EE (C) | 32P+E |
