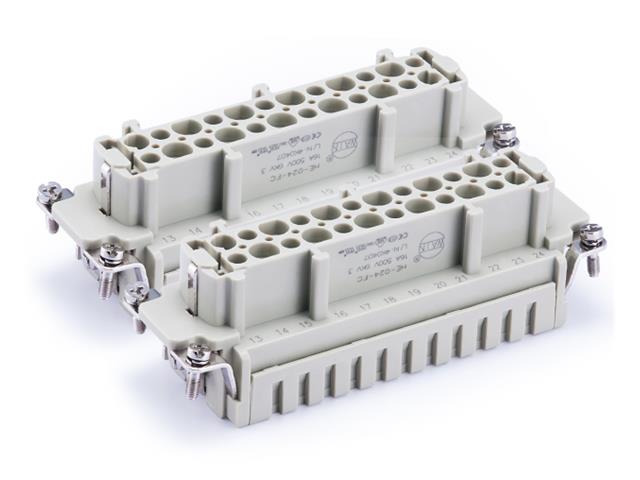

Series 48E (C) Insert 24P+E - Size 48B - Female Crimp Termination 16A/500V -Numbered 25-48
Article No. 122 024 020 0002
Industry No. 09330242712
Size: 48B
Series: 48E (C)
Datasheet HE-024-FC(25-48)
SPECIFICATIONS
| Inserts | |
| Number of contacts | 48(2x24)+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm² |
| ---AWG | 26-12 |
| ---Stripping length | 7.5mm |
