HE-024-F

HE-024-F

Regular price
Dhs. 73.36
Regular price
Sale price
Dhs. 73.36
Unit price
per
Availability
Sold out

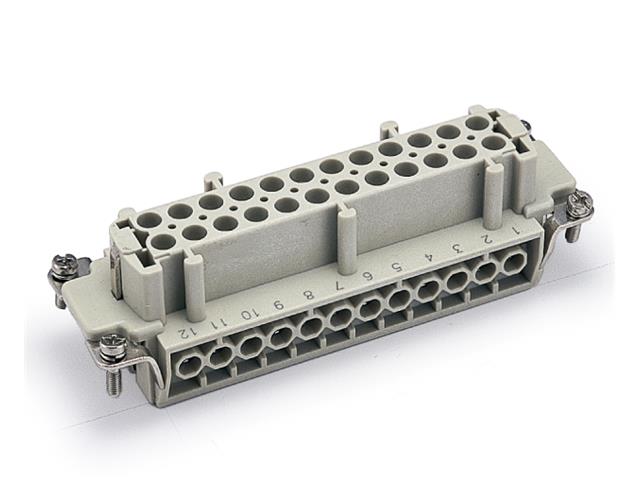

Series 24E Insert 24P+E - Size 24B -  Female Screw Termination w/Wire Protection 16A/500V
Article No. 122 024 021 0001
Industry No. 09330242701
Size: 24B
Series: 24E

Datasheet HE-024-F

Inserts
Number of contacts 24+PE
Electrical data acc. to DIN EN 61 984
---Rated current 16A
---Rated voltage 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
  hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.75-2.5mm²
---AWG 18-14
---Tightening/Test torque 0.5Nm
---Stripping length 7.0mm

ACCESSORIES

Please Click here to view list of Accessories for size 24B
