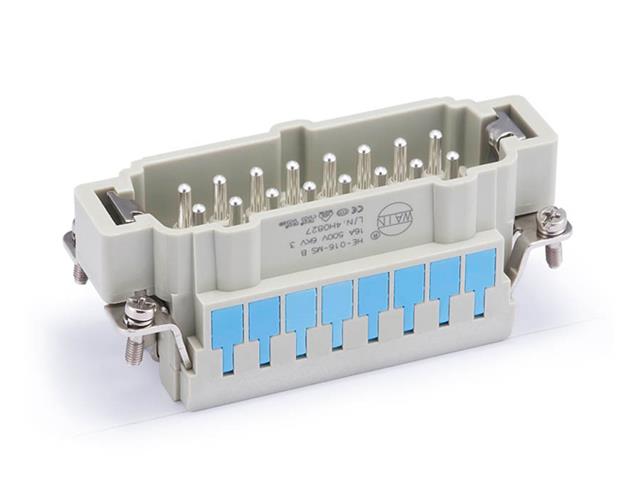

HE-016-MS B

Quantity must be 1 or more

SPECIFICATIONS

Inserts
Number of contacts	16+PE
Electrical data acc. to DIN EN 61 984
---Rated current	16A
---Rated voltage	500V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-gold plated
	hard-silver plated
Contact resistance	≤1mΩ
Spring terminal
---Wrie gauge	0.14-2.5mm²
---AWG	26-14
---Stripping length	7-9mm
