HE-016-M(17-32)

HE-016-M(17-32)

Regular price
Dhs. 56.72
Regular price
Sale price
Dhs. 56.72
Unit price
per
Availability
Sold out

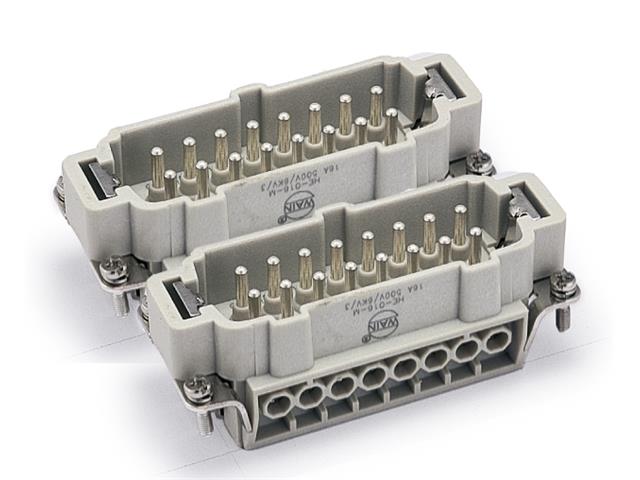

Series 32E Insert 16P+E - Size 32B -  Male Screw Termination w/Wire Protection 16A/500V -Numbered 17- 32
Article No. 122 016 011 0002
Industry No. 09330162611
Size: 32B
Series: 32E

Datasheet HE-016-M(17-32)

Inserts
Number of contacts 32(2x16)+PE
Electrical data acc. to DIN EN 61 984
---Rated current 16A
---Rated voltage 500V
---Rated impulse voltage 6kV
---Pollution degree 3
---Pollution degree 2 also 16A 400/690V 6kV 2
Rated voltage acc. to UL/CSA 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
  hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 0.75-2.5mm²
---AWG 18-14
---Tightening/Test torque 0.5Nm
---Stripping length 7.0mm

ACCESSORIES

Please Click here to view list of Accessories for size 32B
