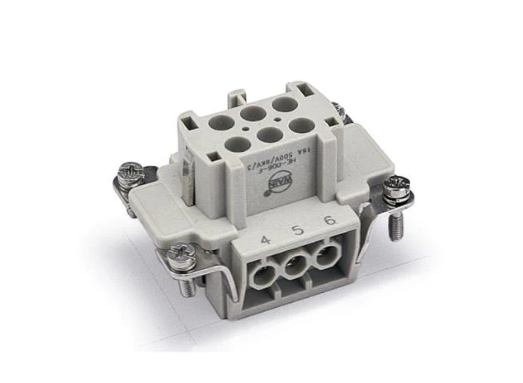

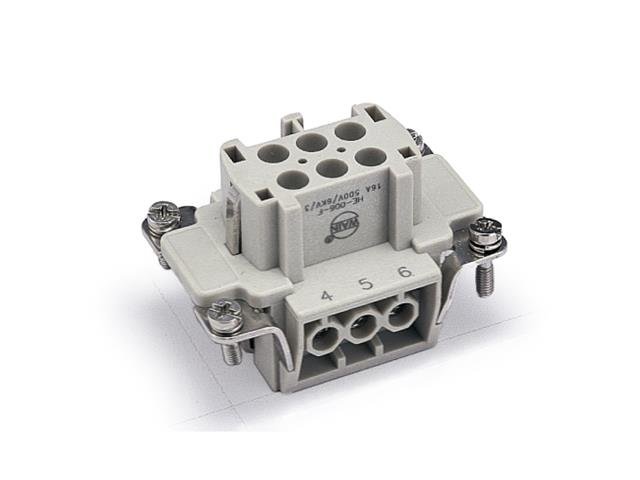

Series 6E Insert 6P+E - Size 6B - Female Screw Termination w/Wire Protection 16A/500V
Article No. 122 006 021 0001
Industry No. 09330062701
Size: 6B
Series: 6E
SPECIFICATIONS
| Inserts | |
| Number of contacts | 6+PE |
| Electrical data acc. to DIN EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.75-2.5mm² |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.5Nm |
| ---Stripping length | 7.0mm |
