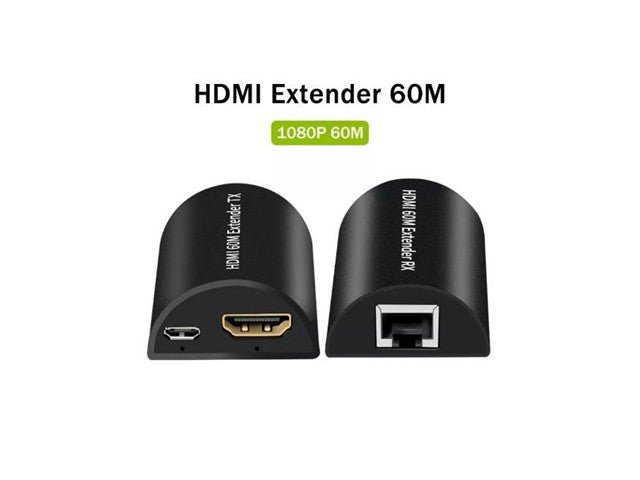

HDMI Extender 60m. Over Single CAT 5E/6E Cable
60m HDMI Extender
Overview
The Extender can transmit HDMI video to distances up to 60M over a single qualified Cat6 Ethernet cable instead of a costy long and active HDMI Cable.
NOTE
Video transmission has very high requirements on network cable.Please use qualified Cat5/e/6 and above cables to pair the TX and RX only.
A qualified network cable is made of a pure conductor instead of CCA (Copper Clad Aluminium) or CCS.(Copper Clad Steel)
Max. video transmission distance: 50m for Cat5e with 26 AWG copper conductor and 60m for Cat6 and above with 26 AWG copper conductor.
Features
- Highest video resolution supported is 1080p / 60Hz
- 60m long distance transmission dependent on type of cable used
- Supports standard AWG26 HDMI cable, transmitter up to 10 meters / receiver up to 15 meters.
Specifications
- Max (CAT5e / CAT6 cable) length between transmitter and receiver: 60m
- HDMI resolution: 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
- Max. transmitter (TX) operating current: 300mA
- Max. receiver (RX) operating current: 300mA
- Max. bandwidth: 150MHz
- Max. baud rate: 4.5Gbps
- Power adapter format: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A
- Operating temperature: -15°C ~ +45°C
- Operating humidity: 5-90% RH
- Size: 52x38x17 mm
- Weight: TX 24.5g; RX 24.9g

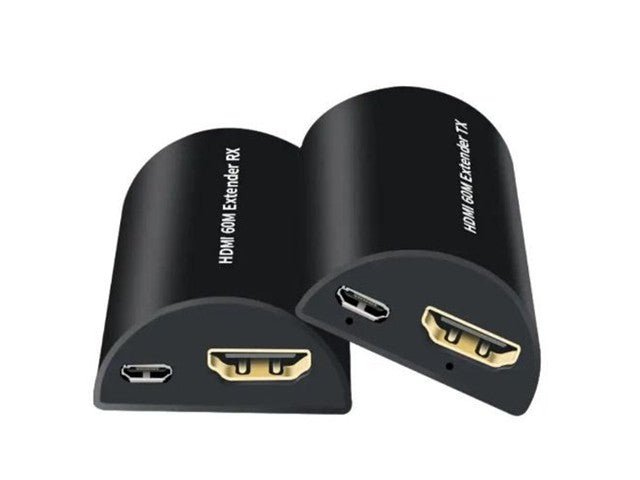

Transmitter ports:
- POWER - power input port
- INPUT - HDMI input port
- CAT5E/6 - CAT5e / CAT6 cable connection port
Receiver’s ports:
- POWER - power input port
- OUTPUT - HDMI output port
- CAT5E/6 - CAT5e / CAT6 cable connection port
WHAT'S IN THE BOX
- Transmitter (TX) x1
- Receiver (RX) x1
- Power adapter and Micro USB cable x2
Additional Information
| Device | Extender |
| Type | 60m | HDMI |
