HDD-108-FC

HDD-108-FC

Regular price
Dhs. 77.59
Regular price
Sale price
Dhs. 77.59
Unit price
per
Availability
Sold out

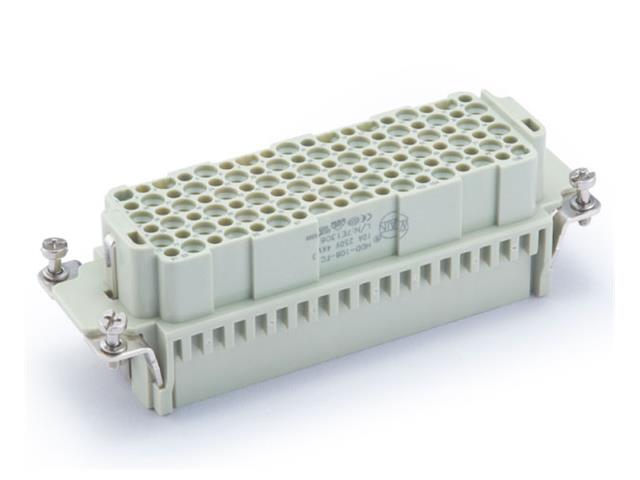

Series 108DD (C) Insert 108P+E - Size 24B -  Female Crimp Termination 10A/250V
Article No. 126 108 020 0001
Industry No. 09161083101
Size: 24B
Series: 108DD (C)



Inserts
Number of contacts 108+PE
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage  250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 10A 230/400V 4kV 2
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14


ACCESSORIES

Please Click here to view list of Accessories for size 24B
