HDD-072-FC
HDD-072-FC
Regular price
Dhs. 71.10
Regular price
Sale price
Dhs. 71.10
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

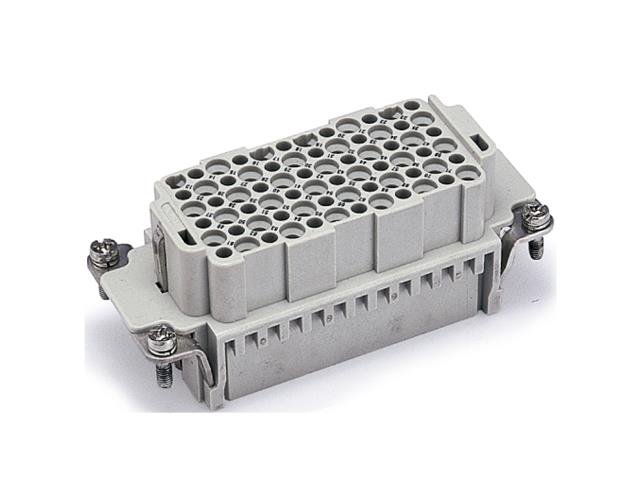

Series 72DD (C) Insert 72P+E - Size 16B - Female Crimp Termination 10A/250V
Article No. 126 072 020 0001
Industry No. 09210723101
Size: 16B
Series: 72DD (C)
SPECIFICATIONS
| Inserts | |
| Number of contacts | 72+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
ACCESSORIES
Please Click here to view list of Accessories for Size 16B
