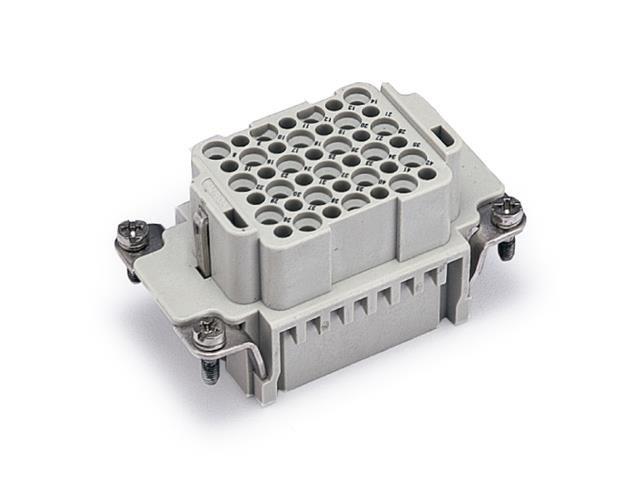

Series 42DD (C) Insert 42P+E - Size 10B - Female Crimp Termination 10A/250V
Article No. 126 042 020 0001
Industry No. 09160423101
Size: 10B
Series: 42DD (C)
SPECIFICATIONS
Inserts | |
Number of contacts | 42+PE |
Electrical data acc. to EN 61 984 | |
---Rated current | 10A |
---Rated voltage | 250V |
---Rated impulse voltage | 4kV |
---Pollution degree | 3 |
---Pollution degree 2 also | 10A 230/400V 4kV 2 |
Rated voltage acc. to UL | 600V |
Insulation resistance | ≥1010Ω |
Material | polycarbonate |
Limiting temperatures | -40℃...+125℃ |
Flammability acc. to UL 94 | V0 |
Mechanical working life(mating cycles) | ≥500 |
Contacts | |
Material | copper alloy |
Surface | hard-gold plated |
hard-silver plated | |
Contact resistance | ≤3mΩ |
Crimp terminal | |
---Wrie gauge | 0.14-2.5mm² |
---AWG | 26-14 |
