Product Details
CAN to Fibre Optic Repeater - High Performance Extender Bus Line 1MBp/s. 1xCAN; 2x ST Fibre Ports - 10-19VAC/10-35VDC Power Supply - DIN Rail Mountable.
CAN to Fibre Optic Repeater
Specifications
- Ports : 1xCAN; 2x Optic Fibres
- CAN2.0 connector : Terminal block
- Optic Fibres connector : ST 820 um
- DATA rates CAN2.0 : Up to 1Mbps
- DATA rates optic Fibres : 1Mbps
- Power supply : 10...19V AC ; 10...35V DC
- Operating temperature : -40°C/+85°C (-40°F/+185°F)

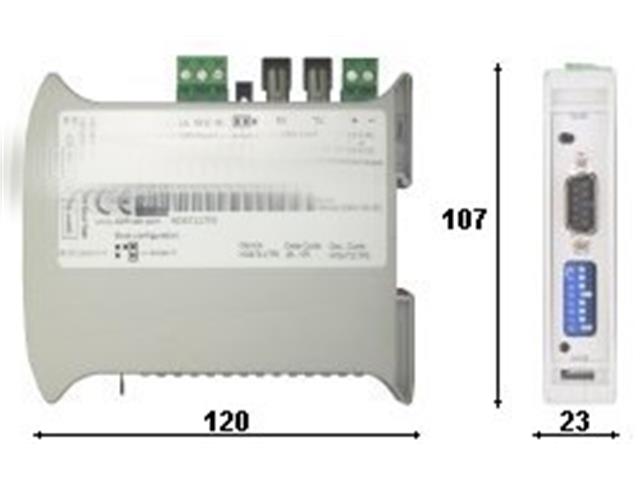

- Dimensions : 120x23x107 mm(DxWxH)
- Weight : 200g approx
- Mechanical fixing : DIN Rail montage
Additional Information
| Device | Repeater |
| Type | CAN to Fibre | Optic |
