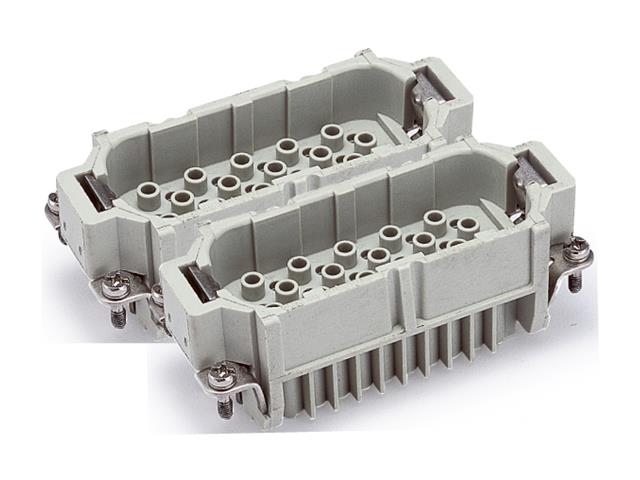

Series 80D (C) Insert 40P+E - Size 32B - Male Crimp Termination 10A/250V (Z) = 09210403011
Series 80D (C) Insert 40P+E
Specifications
| Inserts |
| Number of contacts |
80(2x40)+PE |
| Electrical data acc. to EN 61 984 |
|
| ---Rated current |
10A |
| ---Rated voltage |
250V |
| ---Rated impulse voltage |
4kV |
| ---Pollution degree |
3 |
| ---Pollution degree 2 also |
10A 230/400V 4kV 2 |
| ---Rated voltage acc. to UL |
600V |
| Insulation resistance |
≥1010Ω |
| Material |
polycarbonate |
| Limiting temperatures |
-40℃...+125℃ |
| Flammability acc. to UL 94 |
V0 |
| Mechanical working life(mating cycles) |
≥500 |
| Contacts |
| Material |
copper alloy |
| Surface |
hard-gold plated |
| hard-silver plated |
| Contact resistance |
≤3mΩ |
| Crimp terminal |
|
| ---Wrie gauge |
0.14-2.5mm² |
| ---AWG |
26-14 |
Downloads
Additional Information
| Device |
Insert |
| Type |
Series 80D (C) | 40P+E |
