HD-040-MC

HD-040-MC

Regular price
Dhs. 52.27
Regular price
Sale price
Dhs. 52.27
Unit price
per
Availability
Sold out

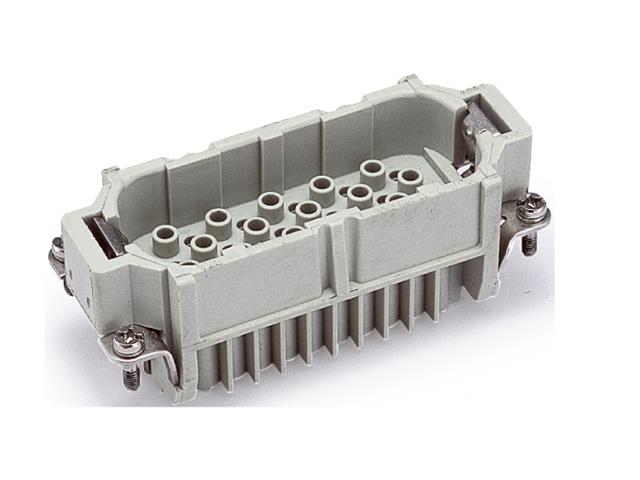

Series 40D (C) Insert 40P+E - Size 16B -  Male Crimp Termination 10A/250V
Article No. 125 040 010 0001
Industry No. 09210403001
Size: 16B
Series: 40D (C)

SPECIFICATIONS

Inserts
Number of contacts 40+PE
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage  250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 10A 230/400V 4kV 2
---Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14


ACCESSORIES

Please Click here to view list of Accessories for Size 16B
