HD-025-MC
HD-025-MC
Regular price
Dhs. 43.12
Regular price
Sale price
Dhs. 43.12
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

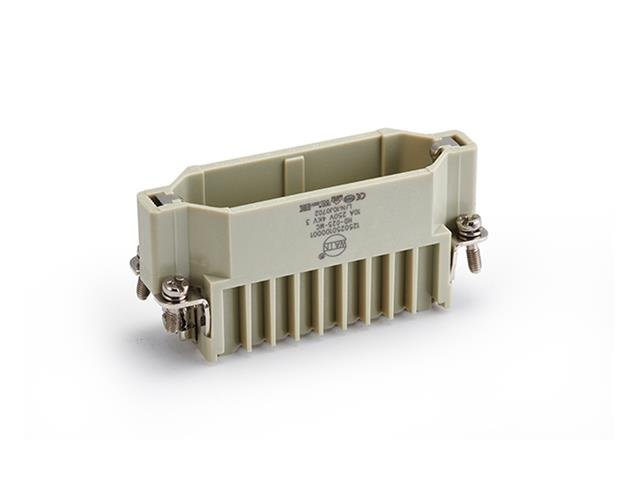

Series 25D (C) Insert 25P+E - Size 16A - Male Crimp Termination 10A/250V
Article No. 125 025 010 0001
Industry No. 09210253001
Size: 16A
Series: 25D (C)
SPECIFICATIONS
| Inserts | |
| Number of contacts | 25+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 10A 230/400V 4kV 2 |
| ---Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤3mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-2.5mm² |
| ---AWG | 26-14 |
ACCESSORIES
Please Click here to view list of Accessories for Size 16A
