HD-015-FC

HD-015-FC

Regular price
Dhs. 43.37
Regular price
Sale price
Dhs. 43.37
Unit price
per
Availability
Sold out

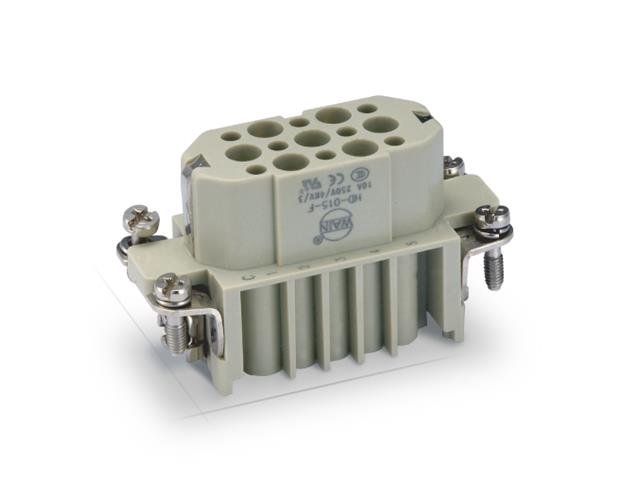

Series 15D (C) Insert 15P+E - Size 10A -  Female Crimp Termination 10A/250V
Article No. 125 015 020 0001
Industry No. 09210153101
Size: 10A
Series: 15D (C)
Inserts
Number of contacts 15+PE
Electrical data acc. to EN 61 984
---Rated current 10A
---Rated voltage  250V
---Rated impulse voltage 4kV
---Pollution degree 3
---Pollution degree 2 also 10A 230/400V 4kV 2
---Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-gold plated
hard-silver plated
Contact resistance ≤3mΩ
Crimp terminal
---Wrie gauge 0.14-2.5mm²
---AWG 26-14


ACCESSORIES

Please Click here to view list of Accessories for Size 10A
