Product Details

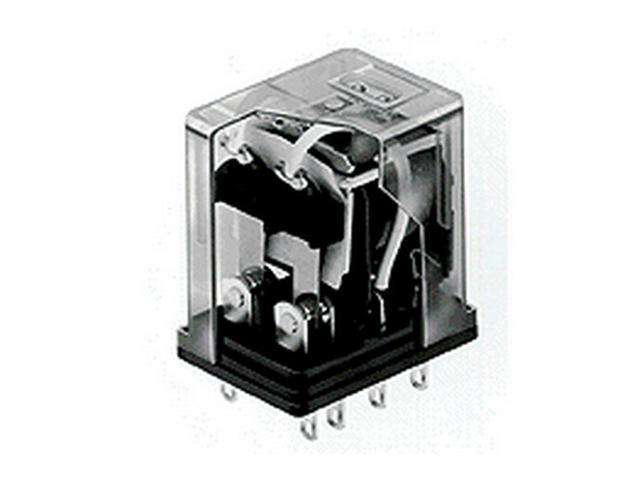

Medium - Hi Power Relay • Form 1C • VCoil= 12V DC • IMax Switching= 10A • RCoil= 160Ω • Plug-In • Vertical Case
Overview
Features
Â
- Vertical Case
Specification
Â
| Model | HC1DC12V |
| Contact Form | Form 1C |
| Size Category | Std Size |
| Size | 27x21x35mm |
| Termination | Plug-In |
| Coil Rated Voltage | 12V |
| AC/DC Voltage | DC |
| Max. Switching Current | 10A |
| Electrical Rating | 10A/250VAC |
| Coil Power | 900mW Power |
| Coil Resistance | 160Ω |
| Isolation Voltage | 2KV |
| Approvals | UL/CSA |
| Contact Material | Ag |
| No. of Pins | 5 Pin(s) |
| No. of Poles | 1 Pole(s) |
