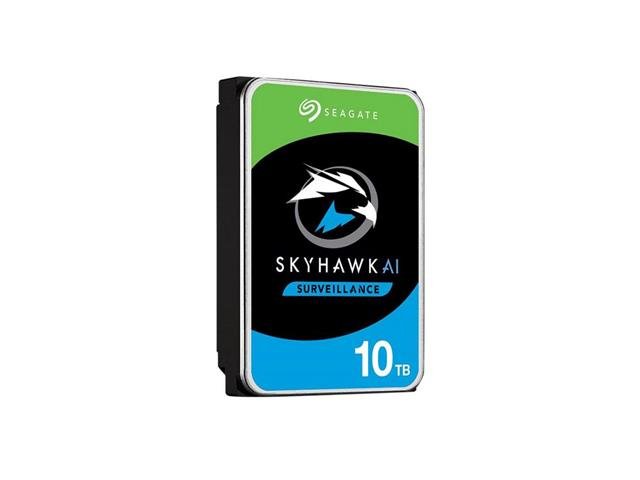

Hard Drive 10TB Seagate Skyhawk AI 3.5" 7200RPM 256MB Cache HDD for Surveillance Systems SATA 6Gb/s

10TB Skyhawk Hard Drive

Features

Image Perfect AI delivers zero dropped frames while supporting heavier workloads.
Versatile capabilities intelligently adapts to the scale of your AI environment, supporting up to 64 HD video streams and 32 AI streams.
SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention and recovery options. It includes RAID RapidRebuild — providing three times faster volume rebuilds over traditional RAID rebuilds.
Higher reliability and enterprise-class, Skyhawk AI hard drives offer 2.5 million hours MTBF and a 550 TB per year workload rate for more than three times that of standard surveillance hard drives.
Recovery services and warranty includes a five-year limited product warranty and three-year in-house Rescue Data Recovery Services.

Brand	Seagate
Series	SkyHawk AI Surveillance
Model	ST10000VE001
Capacity	10TB
Interface	SATA 6 Gb/s
Drive Design	Air
Recording Technology	CMR
Features and Performance
Drive Bays Supported	16+
AI Channels	32
AI Real Time Capture Events/Sec	Up to 120
AI Real Time Compare Events/Sec	Up to 96
HD Cameras Supported	Up to 64
RV Sensors	Yes
Max. Sustained Transfer Rate OD	245MB/s
Cache	256 MB
Reliability/Data Integrity
Tarnish Resistant	Yes
Load/Unload Cycles	600,000
Non-recoverable Read Errors Rate, Max	1 per 10E15
Power-On Hours per year	8,760
Workload Rate Limit (WRL)	550
Mean Time Between Failures (MTBF)	2,000,000 Hrs
Rescue Data Recovery Services	3 Years
Power Management
Startup Current, Typical (12V, A)	2
Average Operating Power	10.1 W
Idling Average	7.8 W
Standby Mode/Sleep Mode, Typical (W)	1/1
Voltage Tolerance (5V)	±5%
Voltage Tolerance (12V)	±10%
Environmental
Operating Temperature (Ambient, min)	0°C
Operating (drive reported, max)	65°C
Non-operating (ambient, min)	-40°C
General
Product Dimensions	26.11 x 101.85 x 146.99 mm
Product Weight	0.720 g

Device	Hard Drive
Type	10TB \| Skyhawk
