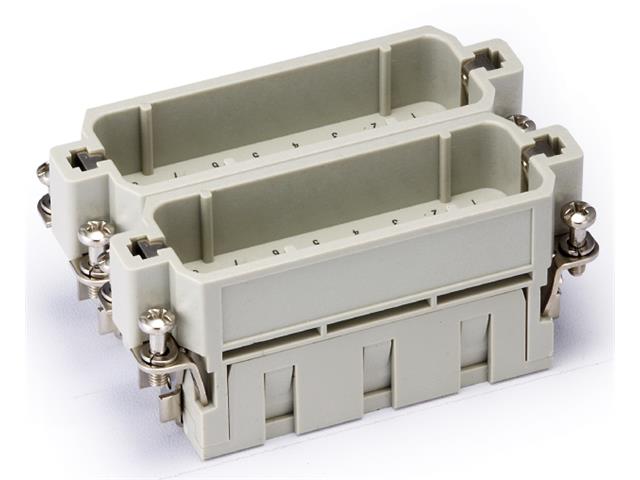

Series 32A (C) Insert 16P+E - Size 10A - Male Crimp Termination 16A/250V -Numbered 17 - 32
Article No. 121 016 010 0002
Industry No. 09200163011
Size: 32A
Series: 32A (C)
FEATURE(S)
Suitable Hoods, Housings and Covers refer the Following
32A Metal Hoods/Housings 2 Lever
W32A-SE-4B-M25
W32A-SEH-4B-M32
W32A-TEH-4B-M25
W32A-TEH-4B-M32
W32A-BK-2L/SC
H32A-SF-2L/SC-2M32
SPECIFICATIONS
| Inserts | |
| Number of contacts | 32(2x16)+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm² |
| ---AWG | 26-12 |
