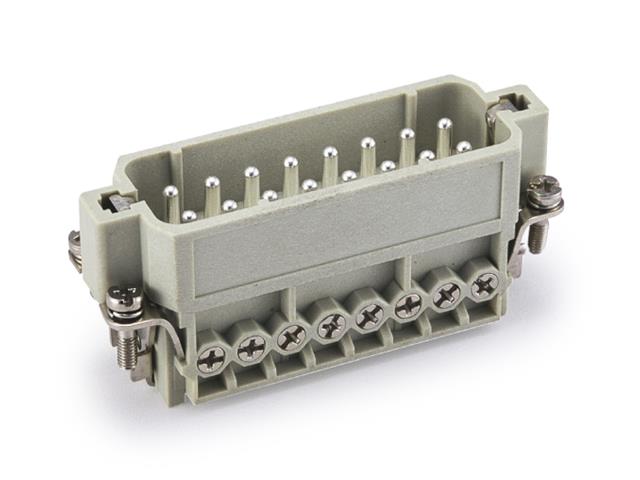

Series 16A Insert 16P+E - Size 10A - Male Screw Termination w/Wire Protection 16A/250V
Article No. 121 016 011 0505
Industry No. 09200162612
Size: 16A
Series: 16A
FEATURE(S)
Suitable Hoods, Housings and Covers
H16A-SE-2B-M20
H16A-SEH-2B-M25
H16A-TE-2B-M20
H16A-BK-1L/SC-CV
H16A-SF-1L/SC-M25
H16A-MCV-1L/SC.1
H16A-MCV-2B/1S
H16A-MCV-2B/2S
SPECIFICATIONS
| Inserts | |
| Number of contacts | 16+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.75-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.5N·m |
