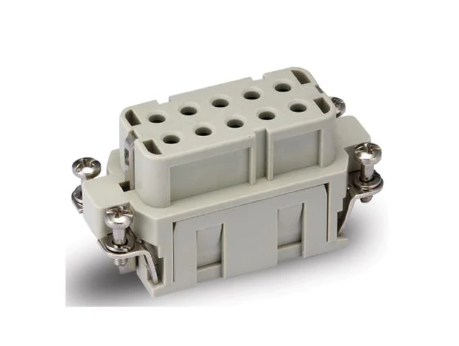

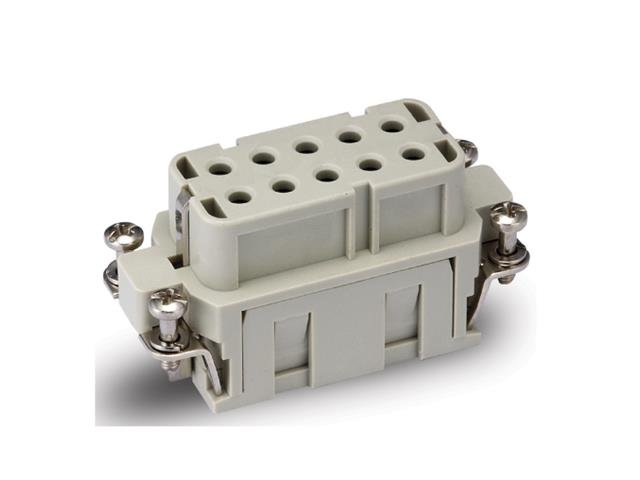

Series 10A (C) Insert 10P+E - Size 10A - Female Crimp Termination 16A/250V
Article No. 121 010 020 0001
Industry No. 09200103101
Size: 10A
Series: 10A (C)
FEATURE(S)
SERIES 10A (C) INSERT 10P+E
10A Metal Hoods/Housings 1 Lever
H10A-BK-1L/SC-T
H10A-BK-1L/SC-CV
H10A-SF-1L/SC-CV-2M20
H10A-MCV-1L/SC.1
H10A-MCV-2B/2S
H10A-SE-2B-M20
H10A-TE-2B-M20
H10A-CCT-1L/SC-M20
SPECIFICATIONS
SERIES 10A (C) INSERT 10P+E
| Inserts | |
| Number of contacts | 10+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---Wrie gauge | 0.14-4.0mm² |
| ---AWG | 26-12 |
