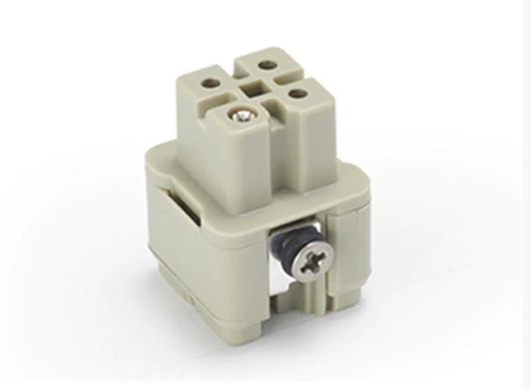

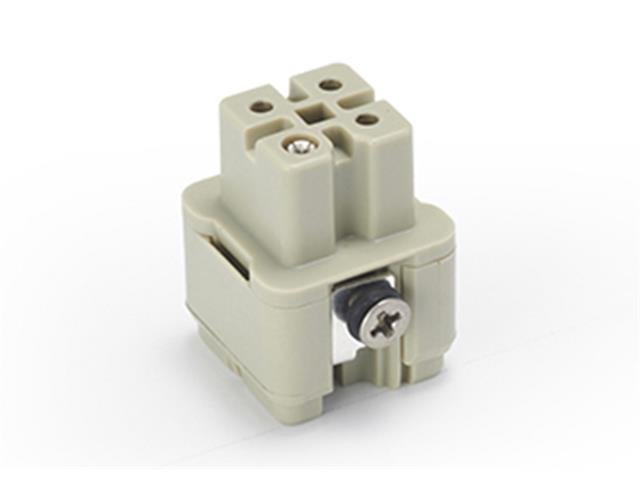

Series 3A Insert 3P+E - Size 3A - Female Screw Termination 10A/230/400V
Article No. 121 003 021 0505
Industry No. 09200032711
Size: 3A
Series: 3A
FEATURE(S)
Suitable Coding Element is: CODE-Q3
3A Plastic Hoods/Housings with Seal Grey M20
H3A.P-BK-1L
H3A.P-CCT-1L-M20 3
H3A.P-SF-1L-M20
H3A.P-SE/S-2B-M20
H3A.P-TE/S-2B-M20
H3A-CV/S-2B/1
H3A-CV/S-2B/2
H3A-CV-1L/1M
H3A-CV-1L/1F
3A Plastic Hoods/Housings No Seal Grey M20
H3A.P-SE-2B-M20
H3A.P-TE-2B-M20
H3A.P-BK-1L-SE
3A Metal Hoods/Housings No Seal M20/M25
H3A-SEH-2B-M25
H3A-SEHC-2B-M20
H3A-TE-2B-M25
3A Metal Hoods/Housings with Seal M20
H3A-TE/S-2B-M20
H3A-BK-1L/W
H3A-BK-1L/W-MCV/S
H3A-SF-1L/W-M20
H3A-CCT-1L/W-M20
SPECIFICATIONS
| Number of contacts | 3+PE |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage conductor | 230/400V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 10A 250V 4kV 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.75-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
