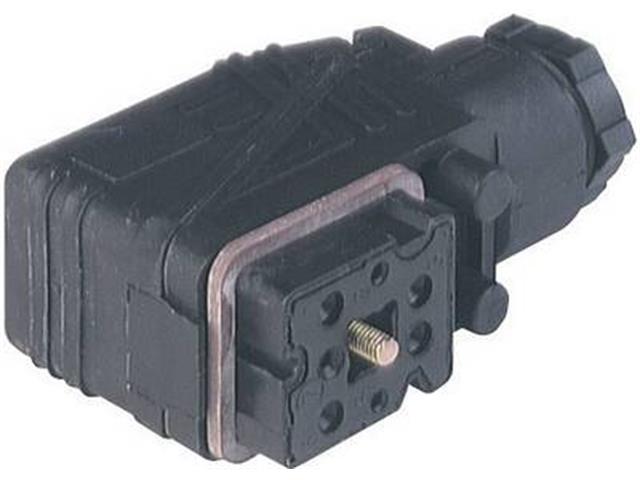

| Hirschmann G Series Connector Cable Socket with Female Contacts 6 Pole + Earth Solder Terminal. 90 degree Cable Entry PG11 Gland 10A 250VAC/DC IP65 (932 484 100) |
- Type : GO 610 WF schwarz/black
- Type of Contact : Female
- Number of Contacts : 6 + PE
- Cable Gland : PG 11
- Conductor Size : 0.25 - 1 mm
- Standard : DIN VDE 0627 / IEC 61984
- Housing Color : Black
Technical Data
- Rated Voltage : AC/DC 250 V
- Rated Current : 10 A
- Contact Resistance : <= 4 Ω
- Type of Termination : Screw
- Suitable Cables : 4 mm to 10 mm
Material
- Contact Surface Material : Sn
- Contact Bearer Material : PA
- Housing Material : PA
Environmental conditions
- Protection Class (IEC 60529) : IP 65
- Pollution Severity : 3
- Temperature Range : -40 °C to +90 °C
Inflammability Class
- Housing : 94 V-1
- Contact Bearer : 94 V-1
