Product Details

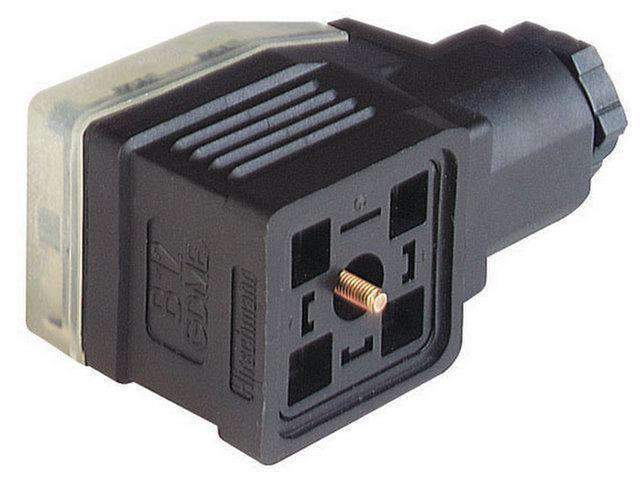

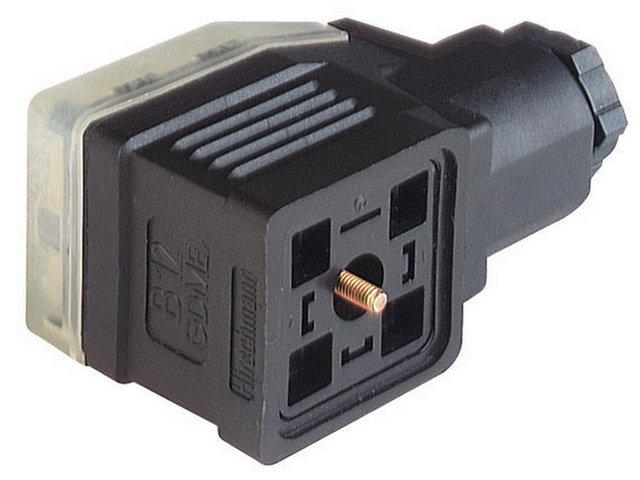

Valve Connector - Cube Female DIN43650-A - 3 Pole + Earth with Timer for Electronic Insert 2A 48VAC/24VDC PG11 IP65 4 - 11mm OD Cable Entry Black (933719100)
Timer Schwarz Cable Socket
Overview
Cable socket with times may be set independently of one another by means of potentiometer, 8 diff. Switching progr. With function indicator (LED) and integral protective wiring and gasket
Feature(s)
with Timer
Specifications
- Number of Contacts : 3 + PE
- Cable Gland : PG 11 (black)
- Conductor size : Max. 1.5 mm²
- Standard : DIN EN 175 301-803-A
- Housing Color : Black, with transparent cover
- Construction : Type A
- Technical data
-
- Pin dimensions : 6.3 mm x 0.8 mm, 4.8 mm x 0.8 mm
- Rated voltage : AC 48 V / DC 24 V
- Rated current : 2 A
- Contact resistance :<= 4 mOhm
- Type of termination : screw
- Suitable cables : 4.5 mm to 11 mm diameter
- Mounting : central nut
- Material
-
- Contact Surface Material : Sn
- Contact Bearer Material : PA
- Housing Material : PA
- Environmental conditions
-
- Protection class (IEC 60529) : IP 65 (gasket necessary)
- Pollution Severity : 3
- Temperature Range : -30 ºC to +60 ºC
- Inflammability class
-
- Housing : 94 V1
- Contact Bearer : 94 V1
Downloads
Additional Information
| Group0 | Rectangular |
| Group | Rectangular Connector |
| Device | Cable Socket |
| Type | Timer Schwarz |
| No. of Contacts | 4 |
| No. of Pins | 2 |
| Colour | Black |
| Series | GM Series |
| Termination | Screw |
| Contact Resistance | > 4 mOhm |
| Degree of Protection | IP65 |
