Large Screen LCD Dual Display Smart Multimeter, 10000Counts, Maximum Voltage: DC/AC 1000V RMS, Capacitance Range:0-10MF, Resistance Range: 0-100mΩ, with Battery 3.7V/1000mAh

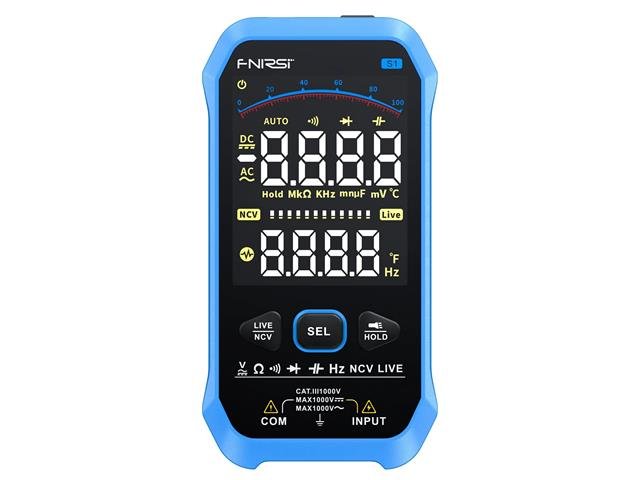

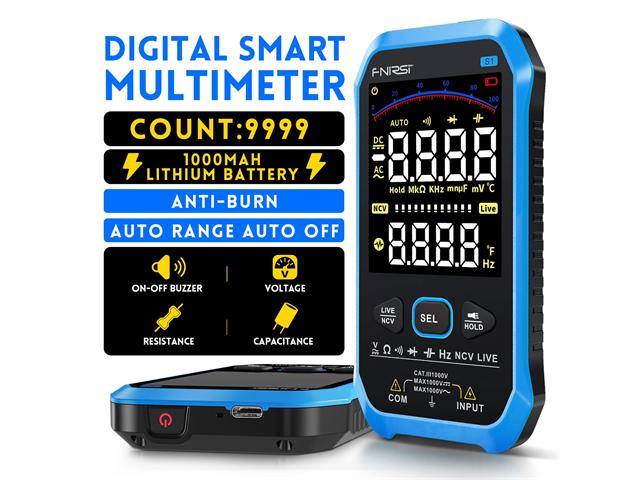

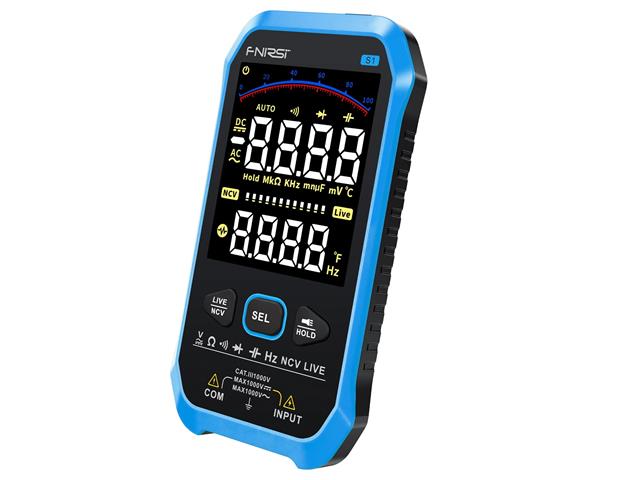

Large Screen LCD Dual Display Smart Multimeter
Overview
The FNIRSI S1 portable digital multimeter can accurately measure AC/DC voltage, resistance, NCV, diode, continuity, capacitance, temperature, frequency and live wire. It is a really useful tool for solving electrical issues in industry and the home. It is suitable for household sockets, fuses, batteries (including vehicles), troubleshooting automotive circuits, charging systems, testing electronics in cars, etc.
Features
- AC and DC voltage
- Intelligent anti-burning
-
Automatic Identification
-
Positive RMS
-
Auto measurement Data hold
-
Built-in flashlight
-
NCV induced voltage
-
Rechargeable: Built-in rechargeable battery, chargeable via power bank or computer.
-
Solid & durable: Constructed with high-quality ABS material for longevity.
-
Easy to install and remove: Simple installation and removal, adaptable for various environments like kitchens, bathrooms, and offices.
Specifications
| AC voltage | 0~1000 V | ±(0.8% +3) |
| DC voltage | 0~1000 V | ±(0.8% +3) |
| Resistance | 0~100 MΩ | ±(1.2% +3) |
| Capacitance | 0 nF~10 mF | ±(4.5% +5) |
| Frequency | 0 Hz~10 Mhz | ±(0.1% +3) |
| Temperature | −20~1000°C | ±(2% +5) |
| Diode | Yes | |
| Automatic OFF | Yes | |
| Lighting | Yes | |
| On-off buzzer | Yes | |
| Auto range | Yes | |
| NCV induced voltage | Yes | |
| Live mode | Yes | |
| Data hold | Yes | |
| Analog | Yes | |
| Low voltage indication | Yes | |
| Max range | 9999 counts | |
| Valid value | 50 Hz~1 kHz | |
| Material | ABS | |
| Display | VA color screen | |
| Power supply | via USB-C (1000 mA rechargeable lithium battery) | |
| Dimensions | 143 x 75 x 19 mm | |
| Weight | 135 g | |
Downloads
Additional Information
| Device | Multimeter |
| Type | Large Screen | LCD | Dual Display | Smart |
