Product Details
1000V DC + AC Peak to Peak High Voltage Oscilloscope Probe with Accessory Kit. Adjustable Attenuation: 100:1 Attenuation Adjustment Enables Versatile Use For Various Signal Levels. 100 MHz Bandwidth
Peak to Peak High Voltage Oscilloscope Probe
Features
- Durable Material: Constructed with ABS material, the probe is built to withstand rigorous use in various environments.
- Precise Rise Time: Rise time of 3.5ns ensures accurate capture of fast signals in oscilloscope measurements.
- Adjustable Attenuation: 100:1 attenuation adjustment enables versatile use for various signal levels.
- High Voltage Compatibility: Maximum operating voltage of 1000V DC + ACPP ensures compatibility with high voltage testing.
- Broad Bandwidth: 100 MHz bandwidth allows for precise measurements across a wide range of frequencies.
Specifications
- Applicable Models : Universal
- Input Resistance : 100MΩ
- Input Capacitance : 6pF
- Compensation Range : 10pF-35pF
- Bandwidth : 100MHz
- Rise Time : 3.5ns
- Maximum Operating Voltage : 1000V DC + ACPP
- Color : black
- Material : ABS
- Cable Length : 1.1m

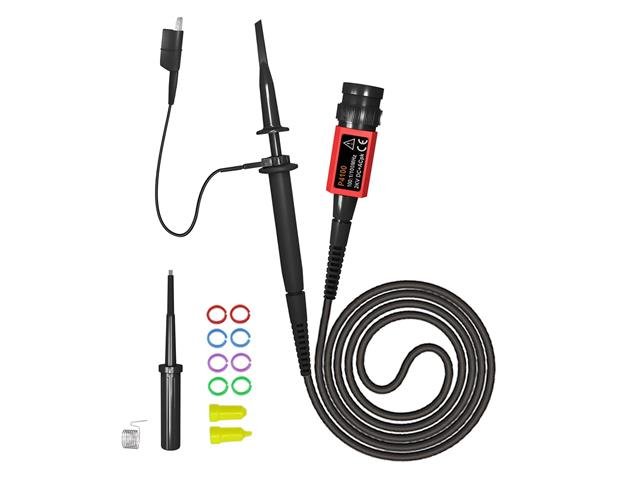

Package Contents:
- 1x Screwdriver
- 8x Marked multi-color ribbon
- 2x Tip positioning sleeve
- 1x Spring
- 1x User Manual
Additional Information
| Device | Oscilloscope Probe |
| Type | Peak to Peak | High Voltage |
