FNIRSI® FNAC-28 2-in-1 TYPE-C USB Tester Digital Voltmeter Ammeter Power Bank Charger Measure
Digital Voltmeter Ammeter Power Bank Charger Measure
Features
-

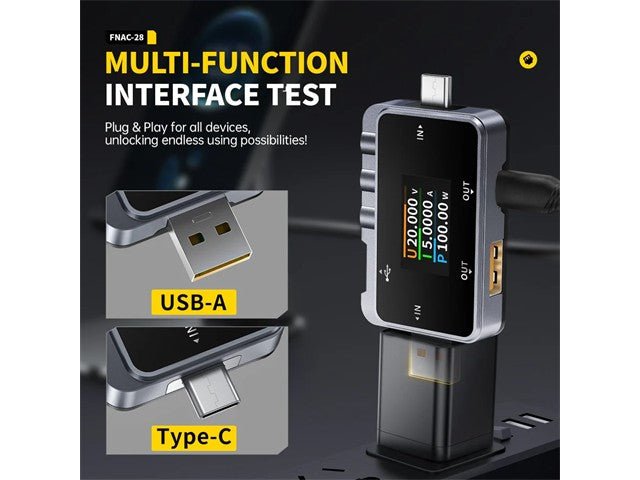

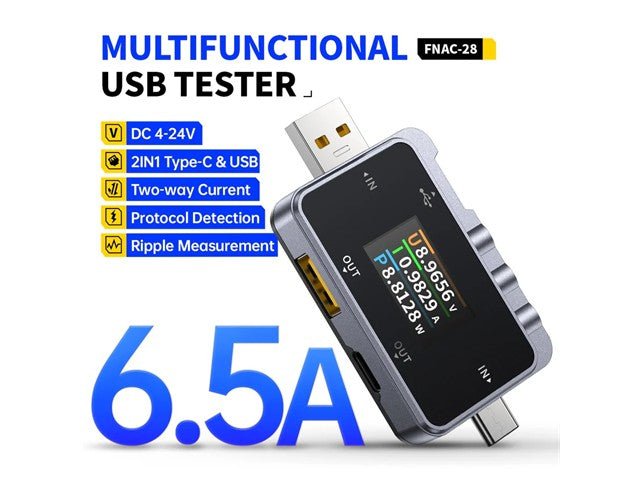

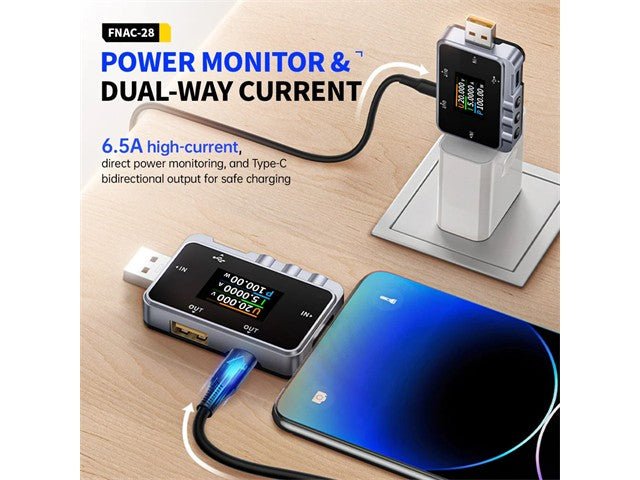

Bidirectional high current detection: FNIRSI FNAC-28 USB tester supports 6.5 A bidirectional current detection, USB-A/Type-C interface compatible, accurately measures power supply and power consumption, and provides users with detailed data support.
-
High-precision measurement chip: The USB power meter uses an external 16-bit ADC to ensure accurate measurement of voltage and current data, effectively reducing the error range and improving the professionalism of the test.
-

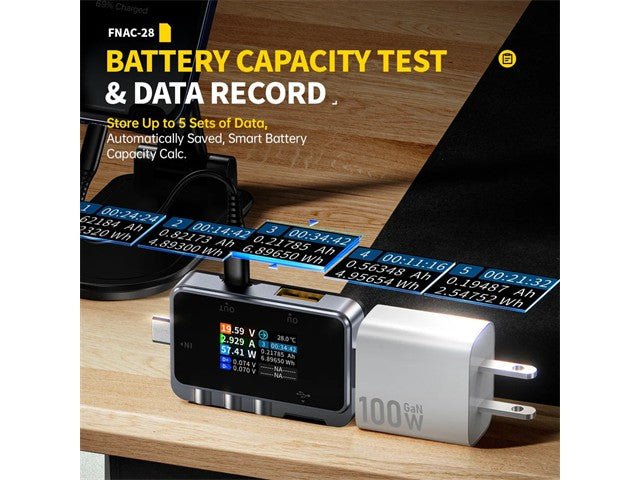

Multi -functional data analysis: USB cable tester supports battery capacity testing, stores 5 sets of data; supports curve display, waveform pause, and the time base range can be adjusted, observed the data carefully.
-
Fast charging protocol support: Voltage tester supports QC2.0/QC3.0, FCP/SCP, AFC, VOOC/WARP, SVOOC 1.0/SVOOC2.0 triggering. All the above protocols support automatic detection to meet various testing needs.
-

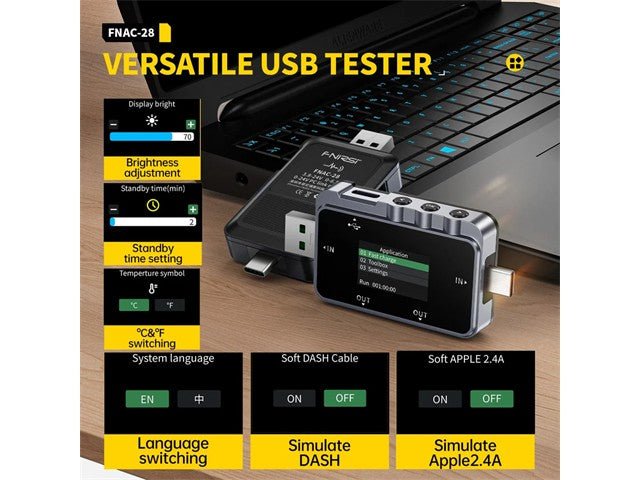

Cable detection and simulation: The USB detector uses the differential pressure method to measure the internal resistance of the cable, simulate APPLE 2.4 A, DASH fast charging, read DASH cable information.
Specifications
| Screen |
1.06 inch color screen |
| Protocol Detection |
① QC2.0: 5V/9V/12V/20V
② QC3.0: 3.4-20V
③ FCP: 9V/12V/20V
④ SCP: 5.5-6.0V
⑤ AFC: 9V/12V
⑥ VOOC/WARP: 20V
⑦ SVOOC 1.0: Support
⑧ SVOOC 2.0: Support |
| Detect DASH Cable |
Support |
| Brightness Adjustment |
Support |
| Standby Time Setting |
Support |
| Temperature Symbol |
℃ / ℉ switch |
| Language |
Chinese / English |
| Dimensions |
73 × 36 × 12 mm |
Downloads
Additional Information
| Device |
Bank Charger Measure |
| Type |
Digital | Voltmeter | Ammeter | Power |
