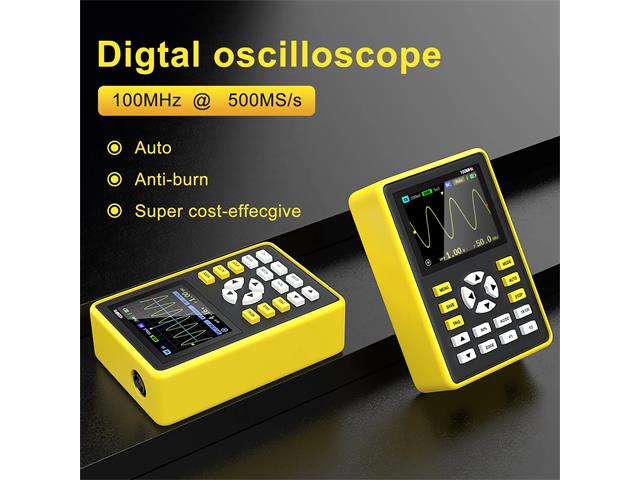

FNIRSI DSO5012H ONE CH 100MHZ

FNIRSI DSO5012H ONE CH 100MHZ

Dhs. 1,647.83
Dhs. 1,647.83
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Product Details

The 5012H is a Single Channel Portable Digital Oscilloscope with Bandwidth of 100MHz, and 500MSA/S Sampling Rate. It Has A 3.7V 3000mAh Battery

Single Channel Portable Digital Oscilloscope

Overview

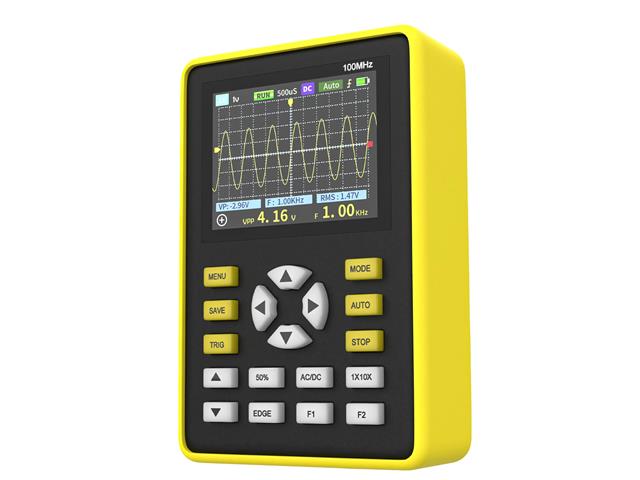

FNIRSI-5012H is a fully functional, cost-effective handheld oscilloscope aimed at users in the maintenance and R&D industries. Equipping with100MHz analog bandwidth and a real-time sampling rate of 500MS/s. Built-in high voltage protection module, up to 400V continuous voltage and 800V peak voltage. With 2.4-inch 320*240 resolution high-definition LCD screen. 64M storage space, can store up to 2000 waveform pictures. Built-in 3000mah high-quality lithium battery, battery life up to 12 hours. And also with high-quality silicone protective case, anti-slip and anti-fall, soft and comfortable.

Features

  • Bandwidth: 500kHz, 1CH
  • Sample Rate: 10MSa/s
  • Trigger Modes: Auto, Single, Normal
  • Trigger Type: rising edge, falling edge
  • AUTO One-key function – grab and save a waveform instantly
  • Test Voltage range:  400V
  • Vertical Sensitivity: 10mV ~ 10V
  • Horizontal Time Base range: 1us ~ 10s

Function Generator Specifications:

  • 6 Waveform types: sine, square, pulse, triangle, ramp, DC
  • Output Frequency: 1 ~ 100kHz
  • Output Voltage: 0~3.3V adjustable
  • Output Duty ratio adjustable 0~100%

Component Tester Specifications:

  • Automatically identifies and measures various transistors, including NPN and PNP triode, N-channel and P-channel MOSFETs, JFET, diodes, double diodes, thyristors, capacitors etc., passive components
  • Automatic detection of pin definitions

Specifications

  • Analog Bandwidth: 100MHz
  • Maximum Real-Time Sampling Rate: 500MS/s
  • Vertical Sensitivity: 50 mV/div ~ 100 V/div
  • Horizontal Time Base Range: 50S/div ~ 6nS/div
  • Maximum Test Voltage: 80V (1X probe), 800V (10X probe)
  • Storage Depth: 128KB
  • Input Resistance: 1M
  • ADC Precision: 8 bits
  • Coupling Mode: AC/DC
  • Trigger Mode: Single, Normal, Auto
  • Trigger Edge: Ascending/Descending Edge
  • External Trigger Voltage: 0-80V
  • Display: 2.4 inch – 320*240
  • Power Supply: 3000mAh Lithium Battery
  • Size: 114mm x 74mm x 33mm
  • Weight: 250g

Display and Technology:

  • Display: 2.4 inch color screen
  • Afterglow display technology
  • Memory compression technology for flicker-free waveform refresh

Downloads

Additional Information

Device Oscilloscope
Type Single Channel | Portable | Digital
