Product Details
The 1C15 Is A Single Channel Portable Digital Oscilloscope with Bandwidth of 110MHz, and 500MSA/S Sampling Rate. It has a 3.7V 3000mAh Battery

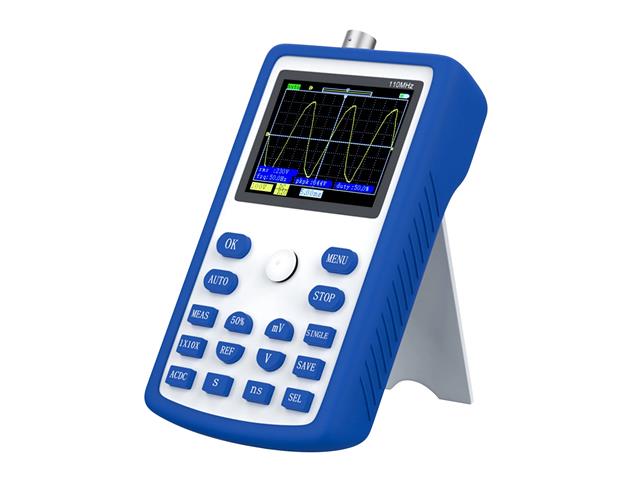

1C15 Handheld Mini Digital Oscilloscope
Overview
The new FNIRSI-1C15 is a handheld Single-channel Mini-Oscilloscope with 110MHz bandwidth and 500Ms/s sampling rate. It is very compact and lightweight with low power consumption. It has a micro-USB charging interface and a lithium battery. This oscilloscope has a high-resolution colour screen and minimalist keyboard design. A useful Joystick button replaces the conventional direction buttons, making it simpler and more efficient to use. The ideal mini-oscilloscope for the beginner, fieldwork and as a handy tester on your desk.
Features
- AUTO One-key function – grab and save a waveform instantly
- Stores up to 81 waveform images
- Pause and save the last frame to the screen and easily compare it to the current refreshed waveform
- A Joystick button replaces conventional direction buttons for ease-of-use
- Supports drag/expand to analyse waveforms
Specifications
- Bandwidth: 110MHz, 1CH
- Sample Rate: 500MSa/s
- Max waveform capture rate: Max. 30,000wfm/s
- Measures 14 types of waveforms
- Time Base Range: 5ns/div~10s/div
- Storage Depth: 240kpts
- Trigger Modes: Auto, Single, Normal
- CE-certified
- 1-Year Warranty
- Battery Capacity: 3000mAh Lithium (10 hours use-time)
- Display: 320 x 240 pixels colour display
- Non-slip Silicone sleeve to protect the oscilloscope
- Dimensions: 130 x 76 x 27mm (L x W x H)
- Weight: 210g
Downloads
Additional Information
| Device | Oscilloscope |
| Type | 1C15 | Handheld | Mini | Digital |
